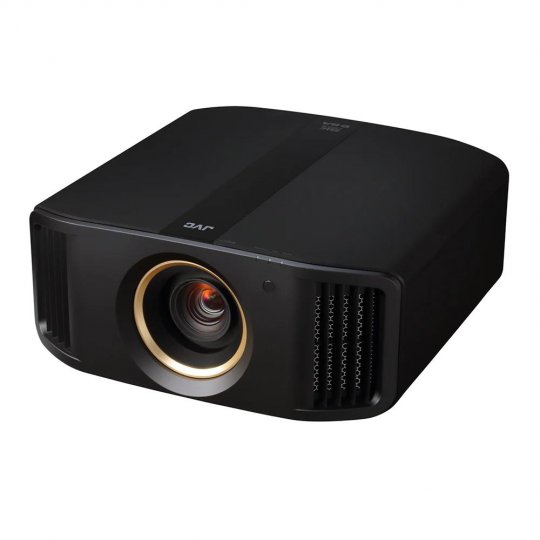

JVC DLA-RS3100 D-ILA Projector

The world's first home theater model to feature 8K60p/4K120p input. Equipped with 8K/e-shift proprietary technology, this projector reproduces 8K-quality images from 4K signals. It is compatible with the latest HDR10/HDR10+ and features new Frame Adapt HDR Generation 2. The BLU-Escent laser diode light source with new light source control enhances the viewing experience.

Frame Adapt HDR Generation 2

The Frame Adapt HDR technology uses a proprietary algorithm to analyze the maximum brightness of HDR10 content per frame and adjust the dynamic range in real time. This results in HDR images with higher definition and a three-dimensional feeling.

Light Source Control by Gauge

Laser light source adjustment function allows fine adjustments based on screen brightness and user preferences. It offers flexibility in various use environments.

USB Backup

USB backup function saves all settings to a USB flash drive, allowing professional adjustments to be saved or restored as needed.

World’s First 8K/4K Projector

Capable of inputting 8K60p/4K120p signals for stunning visuals from any source.

8K e-shift Technology

Proprietary technology combining high-resolution display and native 4K D-ILA device for immersive 8K experience.

Low Latency Mode

Ideal for high frame-rate gaming content, reduces delay in displaying PC signals and games for rapid response.

All-Glass Lens

17-element, 15-group lens with a full aluminum barrel ensures sharpness and clarity across the screen.

Unparalleled Black Levels

Achieved through a native contrast of 40,000:1 and dynamic contrast of ∞ (infinity):1 with BLU-Escent light source.

Reliable BLU-Escent Laser Diode

Provides exceptional brightness and longevity (20,000 hours*) for detailed, smooth, powerful video expression.

New Laser Dynamic Control Algorithm

Offers increased dynamic range, enhancing stars, nightscapes, and low peak luminance images.

HDR10+ Support

Compatible with HDR10, HLG, and HDR10+ formats, ensuring optimal picture quality for rich HDR content.

Frame Adapt HDR Improvements

 Theater Optimizer, HDR Quantizer with Auto (Wide) level mode, and additional Frame Adapt HDR picture modes for versatile HDR playback.

FILMMAKER MODE™

Faithfully reproduces creators' intentions by turning off frame interpolation and noise reduction, ensuring faithful picture quality.

• Lens Shift Function Wide lens-shift function for flexible and distortion-free installation.

• Clear Motion Drive Supports 4K60P (4:4:4) signal for improved moving images.

• Color Management System 6-axis Matrix for precise color control.

• ISF C3 Mode Reproduces excellent picture quality optimized for specific environments.

• Auto-Calibration Function Utilizes an optical sensor for easy calibration.

• Wireless 3D Viewing Offers wireless transmission options for immersive 3D experiences.

Device Specifications

• D-ILA Technology: Yes
• Chip Type: 0.69-inch 4K D-ILA device
• Native Resolution: 4096 x 2160
• Number Of Chips: 3
• 8K/e-shiftX: Yes
• Display Resolution: 8192 x 4320

Light Source

• Laser: Yes
• Type: BLU-Escent Laser Diode
• Life Time (Standard Mode): 20000 hours


• Brightness: 2500 lm
• Dynamic Contrast: ∞ : 1
• Native Contrast: 80000 : 1
• Dynamic Light Power Control: Yes
• Modes: Mode 1 (gentle), Mode 2 (strong), Off
• Manual Aperture: Yes (Range: -15 to 0)
• DCI-P3 Color Gamut: Yes
• 100% REC 709: Yes
• Color Bit Depth: 12 bit
• ISFccc Certification: Yes
• HDR10: Yes
• HDR10+: Yes
• Frame Adapt HDR: Yes
• Theater Optimizer: Yes
• HLG: Yes
• Auto Tone Mapping: Yes
• Mastering Info Display: Yes
• Info data: MaxCLL and MaxFALL mastering data
• HDR Picture Modes: BT.709 / BT.2020 / DCI / HDR

Lens

• Zoom: 2x
• Throw Ratio: 1.43-2.92:1
• Diameter: 65 mm
• Material: All-glass
• Build: 17-element, 15-group in a full aluminium lens barrel
• Lens Shift: Yes (Horizontal: ± 34%, Vertical: ± 80%)
• Motorized Zoom: Yes
• Motorized Shift: Yes
• Motorized Focus: Yes

Projection

• Display size (diagonal): 60 - 200 inch

Connections

• HDMI: Yes (Number of Inputs: 2, Data Rate: 48 Gbps, HDCP Version: 2.3)
• Trigger out: Yes (Connector: Mini-Jack 3.5mm)
• Power: DC 12V / 100mA
• 3D Capability: Yes (3D Versions: Frame Packing, Side-by-Side, Top & Bottom)
• 3D Emitter (Optional): Yes, PK-EM2
• 3D Glasses (Optional): Yes, PK-AG3
• LAN: Yes (Connector: RJ45)
• RS-232: Yes (Connector: D-sub 9-pin)
• Service: Yes (Connector: USB Type A for firmware update)

Power & Environment

• Power Requirement: AC100-240V, 50/60Hz
• Projector in Use: 440W
• Standby: Eco-mode: 0.3W
• Network Standby: 1.5W (LAN)
• Fan Noise: 24 dB
• Operating Temperature: 5°C to 35°C
• Operating Humidity: 20% to 80%
• Installation Angle: Horizontal +/- 5 degrees, Vertical +/- 10 degrees
• Installation Height: Below 2,000 m

In the Box

• Remote Control: Yes, RM-MH27
• User Manual: Yes
• Power Cord: Yes
• Batteries: Yes, 2 x AAA-size batteries

Dimensions & Weight

• Product Weight: 50.8 Lb

General Editing Note

Simulated pictures. The values for weight and dimensions are approximate. E.&O.E. Design and specifications subject to change without notice.
