Features:

• iOS Backbone: First major control system built from the ground up using Apple's iOS devices - iPad®, iPad® mini, iPhone®, and iPod touch®

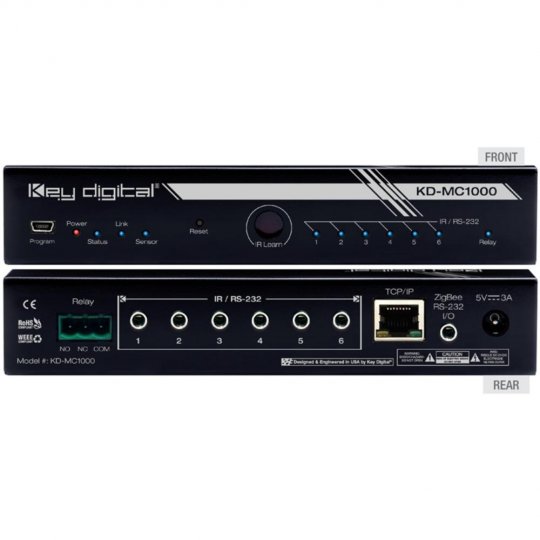

• Total 8 Ports: 6 MCP35™ Multi-Function I/O Ports , 1 Relay/Contact Closure Port, 1 ZigBee Wireless Port
• Multi-function 3.5mm Ports can be programmed to be one of the following functionality: IR in any direction, bi-directional RS-232, Voltage Level
• output, Voltage Sensor input, PCM Audio sensor input or Composite Video Sensor input
• USB Support: USB port for firmware upgrades and initial setup
• Built-in IR Learning: Front-facing IR window enables learning of IR codes from external IR remotes
• LAN: Direct wire to LAN via RJ45
• Relay Control: Control external equipment with one set of switchable contacts. Any multi-function 3.5mm port can be converted to Contact Closure using external Key Digital® KD-CCXR200 Converter
• Real Time Master Control: Allows user to store variables and events internally with/without iOS device
• Compass Navigator™: PC Editor allows fast and easy programming
• Device Configuration: Allows all functions and integration into Compass Project via IP and Compass Navigator™ software
• Complete Control: Audio, video, HVAC, lighting, shades, security, and more
• Control Distribution: Integrates with all Key Digital Control Routing HDMI Switchers to expand the control system and add control ports
• No need for PC or Mac in the system:All system performance is controlled by KD-MC1000 Master Controller and any iOS device
• Compass Alliance™ Partners: Pre-loaded code sets -

Reliable iOS Integration Features:

• IP Connectivity Stabilizer:Stable and constant TCP/IP socket created by KD-MC1000 with IP target devices via Telnet or HTTP regardless or iOS devices status.
• Event Handler:Scheduled events & actions based on iOS time and calendar variables including:
• Schedule Mode: Schedule and execute timer events from iOS device and/or KD-MC1000
• Schedule Sensing Mode: Execute events triggered by voltage or video/audio sensing by KD-MC1000

Specifications:

Technical:

• MCP35™ Multi-Function I/O (6): 3.5mm Female stereo connectors independently configured as IR (mono, Tx or Rx, fixed to +5V), RS-232 (stereo, Tx and Rx, fixed to +5V), Voltage Trigger (fixed to +5V), Voltage Sensor (Digital Audio or Video, from +0.1V to +3.3V)
• Relay (1): Independently configurable to NO (active), or NC (inactive) with 12A / 250VAC resistive switching capacity
• TCP/IP (1): Supports 10/100BaseT up to 100Mbps for communication with iOS devices via LAN, software updates, device configuration and setup
• Power Supply: KD-PS5V2A, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head

General:

• Regulation: CE, RoHS, WEEE
• Enclosure: Black Metal 1/2U
• Product: 6.5" x 4" x 1.13", 1.5 lbs

What's in the box:

• USB Cable
• (1) 3-Pin Terminal Block for Relay
• (6) 3.5mm to IR Emitter
• (3) 3.5mm to RS-232 Data Cable
• Rack Mount Ear
