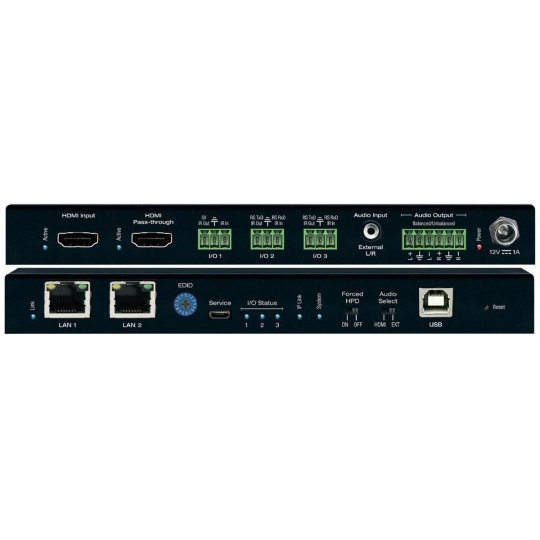

Key Digital KDIP1022ENC 4K Enterprise AV Over IP Encoder

Secure One-Page Checkout


Get 64 Miles When you spend $1,599.99. See details
Key Digital Authorised
This product is brand-new and factory sealed Key Digital KDIP1022ENC  Available 1599.99
UPC : 815996021591  5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back
Shipping : FREE in Canada Ships in 2 to 4 Days

To purchase now by phone, call toll-free: 1-888-248-4969. Item: 12013

$133/mo suggested payments with 12 month special financing now with Flexiti.Get approved for financing in under 3 minutes

4K UHD AV over IP Encoder with Independent Video, Audio, KVM/USB Routing. Audio De-Embed with Volume, Delay, and Bass/Mid/Treble Control, 2 port PoE LAN Switch, HDMI Pass-through, 3 port IR, RS-232, Trigger Master Controller / Control Gateway.


  • AV Over IP: Utilizes a managed gigabit network switch to enable video distribution, matrix switching, and extension
  • Video Wall Processing: Encoder + Decoder systems create video walls with up to 16 vertical and 16 horizontal monitors
  • Mosaic Video Wall: Create decorative video walls using displays of varying sizes and positioning. Begin from templates of popular layouts or easily create fully custom layouts with graphical assistance using KDMS ™ Pro software instead of terminal coding.
  • Independent Switching: Video, Audio, and USB switching all independently routable routed for multi-layer systems
  • Control: 3 multi-function ports may be used as third-party control interface, Compass Control® Pro master controller, control extension via IP, or callable via KeyCode open API
  • Key Digital® App Ready: Network scan & detect populates pre-built GUI including optional image preview, finger drag video wall management, display control via IR, Local input switching, and external audio control.
  • KDMS Pro Ready: PC software for unit & system setup and control UI with clean End-User mode option including optional image preview, mouse-drag video wall management, display control via IR & PJ Link IP, Local input switching, and external audio pre-amp control.
  • HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
  • 4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit (10.2Gbps max bandwidth)
  • 4K Down-scale: Incoming 4K resolution can be down-converted to 1080p or 720p at each decoder, enabling monitors to display content at optimal resolution at all times
  • HDR (High Dynamic Range): HDR is achieved with AppleTV source at 4K/30 [4:2:2] 12bit deep color, enabling more life-like images through a greater range of luminance levels
  • Audio De-Embedding: At Encoder and Decoder for ease of integration with audio systems
  • Audio Pre-Amp: Variable level settings for volume, muting, EQ, balance, and lip-sync delay per Encoder and Decoder
  • HDMI Pass-Through (ENC): Enables connection to local monitor or other AV Devices
  • Local HDMI Input (DEC): Creates localized input option ideal for presentation spaces
  • Signal Extension: Up to 330 ft. / 100 m @ 4K 24/25/30(4:4:4)/60(4:2:0) into network switch or point-to-point
  • Power over Ethernet: Does not require power supply when integrated with compatible PoE network switch.
  • Redundant Power Connection: Added reliability for non-PoE integration.
  • Data Stream Bandwidth: < 900Mbps
  • Latency: <40ms at 4K. Less at lower resolution.
  • Installation: Use KD-SMS16 to cleanly install up to twelve KD-IP822/ENC/DEC units in rack
  • Dual LAN: Built-in switch enables network connectivity and PoE powering of connected devices.
  • USB 2.0: Supports synchronous and isochronous connections (web cams not supported)
  • HDMI® and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60 f/s
  • EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected to Decoder
  • Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices
  • Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control
  • IR Sensor: Sensor powering via +5V IR In port collects line-of-sight IR from remote(s) without external IR connecting block
  • Up/Down IR: Two channels of IR enable control to/from devices connected to Encoder and Decoder units
  • RS-232: Bi-Directional control to/from Encoder and Decoder unit on Phoenix connector
  • RS-232/TCP-IP Control Mode: Provides control of unit as well as connectivity status
  • Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio ™
  • Control System Support: Key Digital® app ready. Key Digital Management Software ™ Pro (KDMS ™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
  • Compass Control® Pro Inside: Built-in 3 port Compass Control® Pro master controller.
    • KD-ProCL1/2/4/8 Software Activation License . Required to activate iOS controllers.
