Features:

• Presentation Switching: 2 HDMI, 1 Display Port, and 1 USB-C source selection by push button or IP control
• Installation: Fits in standard US 3-gang wall box or table and wall AV boxes
• Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switcher. Future Rx options may be available
• Soft-Codec Enabling System: USB Host + Device ports on wall plate and chosen Rx / Presentation Switch create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• CEC Manager ™: Power, volume, and muting controls of the connected displays/projectors without any additional control wiring
• KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager ™
• Ease of Integration: Complete configuration using Key Digital Management Software ™ Pro
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10: More life-like images through a greater range of luminance levels
• Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit
• Installation: Tx unit designed for installation in standard US three-gang box
• Signal Extension: For resolution and cable quality
• 4K/UHD (18G): Up to 100m / 328ft
• 1080p: Up to 150m / 492ft
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
• IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
• RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
• Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio ™
• Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API: Compass Control® Pro, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.

Specifications:

Technical:

• Inputs: 2 HDMI, 1 Display Port, 1 USB-C, 1 IR Sensor, 1 Serial IR, 1 Bi-Directional RS-232
• Outputs: 1 HDBaseT RJ45, 1 Bi-Directional RS-232
• DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• Display Port Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• USB-C Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• RJ45 Connector: Shielded Link Connector, HDBaseT
• IR Connectors: 1 IR Sensor, 1 2-pin phoenix terminal
• RS-232 Connector: 3-pin phoenix terminal

General:

• Regulation: CE, RoHS, WEEE, EAC

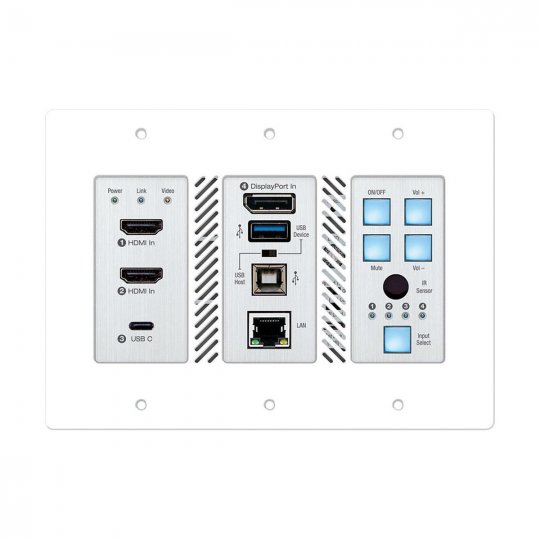

• Wallplate: Standard 3-gang Wallplate
• Enclosure: Faceplate - Silver Brushed Metal, Body - Texturized Silver Meta
• Product Dimensions: 5.5 x 4.1 x 1.43" (141 x 105 x 36.4mm)
• Product Weight: 1.3 lbs

What's in the box:

• USB-A to USB Micro Data Cable
• Aluminum Decora plate (qty 1)
• Decora mounting screws with flat head (qty 6)
• Gang-box mounting screws (qty 6)
• 3-pin phoenix terminal (qty 1)
• 2-pin phoenix terminal (qty 1)
