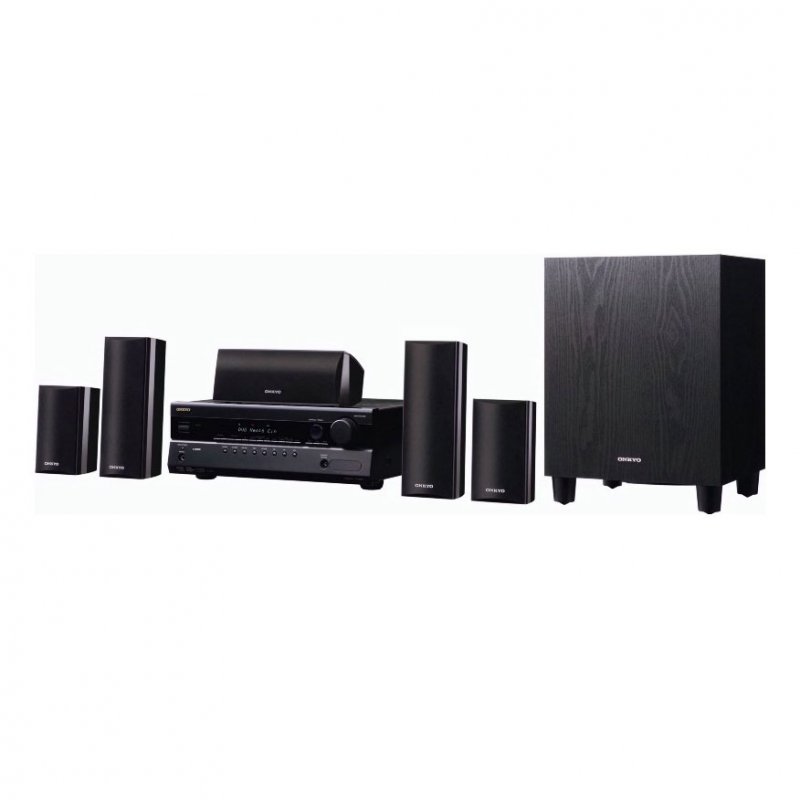

Fully Equipped Home Theater for High-Definition (1080p) Video Sources with Digital Music and Gaming Options
Progress is constant with Onkyo packaged home theater. That’s just what you’ll find with the HT-S3200 5.1-channel receiver/speaker package, which offers more breakthrough technology than ever before at the entry level. With HDMI™ pass-thru for high-definition video, this is a convenient solution that allows you to enjoy Blu-ray Disc, DVD, broadcast, and gaming sources. You can partner this package with whichever display suits your budget and achieve truly performance-driven home theater. Enjoy the benefits of tailored audio performance via a full suite of Audssey technologies, including Audyssey EQ™, Audyssey Dynamic EQ™, and Audyssey Dynamic Volume™. You can even integrate an iPod® or MP3 player via a front-panel input, or take advantage of Onkyo’s new DSP modes for gaming: Rock, Sports, Action, or Role Playing Game (RPG).
Special Features
- Total 660W with a Powerfull 8-inch Subwoofer
- Three 1080p capable HDMI inputs (V1.3a Pass-Thru*)
- 4 DSP Gaming Modes: Rock, Sports, Action, and Role Playing
- Audyssey Dynamic Volume™ to Maintain Optimal Listening Level
Receiver Section | |
Amplifier Section | |
| Power Output | - |
| Front L/R | 115 W/Channel (6 ohms, 1 kHz, FTC) |
| Center | 115 W (6 ohms, 1 kHz, FTC) |
| Surround L/R | 115 W/Channel (6 ohms, 1 kHz, FTC) |
| Surround Back L/R | - |
| Dynamic Power | 180 W (3 ohms) 140 W (4 ohms) 95 W (8 ohms) |
| THD (Total Harmonic Distortion) | 0.9 % (Rated power) |
| Damping Factor | 60 (Front, 1 kHz, 8 ohms) |
| Input Sensitivity and Impedance | 200 mV/47 k-ohms (Line) |
| Output Level and Impedance | 200 mV/470 ohms (Rec out) |
| Frequency Response | 10 Hz–50 kHz/ +1 dB, -3 dB (Direct mode) |
| Tone Control | ±10 dB, 80 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 100 dB (Line, IHF-A) |
| Speaker Impedance | 6 ohms–16 ohms |
Video Section | |
| Input Sensitivity/Output Level and Impedance | - |
| Video | 1.0 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1.0 Vp-p/75 ohms (Composite) |
| Component Video Frequency Response | 5 Hz–50 MHz |
Tuner Section | |
| Tuning Frequency Range | - |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM Preset Memory | 30 stations |
General | |
| Power Supply | AC 120 V, 60 Hz |
| Power Consumption | 3.4 A |
| Standby Power Consumption | 0.1 W |
| Dimensions (W x H x D) | 17 1/8" x 5 7/8" x 14 1/2" (435 x 150 x 369 mm) |
| Weight | 19.4 lbs. (9.6 kg) |
Speaker Section | |
| Speaker Type | - |
| Front/Center | 2-way, bass reflex |
| Full-range, bass reflex | Full-range, bass reflex |
| Subwoofer | Bass reflex, passive |
| Drivers | - |
| Front | 3 1/4" (8 cm) cone woofer, 3/4" (2 cm) ceramic tweeter |
| Center | 3 1/4" (8 cm) cone woofer, 3/4" (2 cm) ceramic tweeter |
| Surround | 3 1/4" (8 cm) cone |
| Subwoofer | 8" (20 cm) cone |
| Frequency Response | - |
| Front/Center | 80 Hz–22 kHz |
| Surround | 80 Hz–22 kHz |
| Surround Back | - |
| Subwoofer | 30 Hz–150 Hz |
| Output Sound Pressure Level | - |
| Front | 82 dB/W/m |
| Center | 82 dB/W/m |
| Surround | 81 dB/W/m |
| Surround Back | - |
| Subwoofer | 83 dB/W/m |
| Max. Input Power | - |
| Front/Center/Surround | 120 W |
| Surround Back | - |
| Subwoofer | 130 W |
| Max. Output Power | - |
| Subwoofer | - |
| Nominal Impedance | - |
| Front/Center/Surround | 6 ohms |
| Surround Back | - |
| Subwoofer | 6 ohms |
| Input Sensitivity/Impedance | - |
| Subwoofer | - |
General | |
| Dimensions (W x H x D) | - |
| Front | 4" x 10 3/4" x 4 3/4" (101 x 273 x 121 mm) |
| Center | 10 3/4" x 4" x 4 3/16" (273 x 101 x 106 mm) |
| Surround | 4" x 6 7/8" x 4 9/16" (101 x 175 x 116 mm) |
| Surround Back L/R | - |
| Subwoofer | 9 5/8" x 16 1/8" x 14 5/8" (245 x 410 x 372 mm) |
| Weight | - |
| Front | 2.2 lbs. (1.0 kg) |
| Center | 2.2 lbs. (1.0 kg) |
| Surround | 1.5 lbs. (0.8 kg) |
| Surround Back | - |
| Subwoofer | 14.6 lbs. (6.6 kg) |
Two-Year Manufacturer's Warranty
This item is features a two-year parts and labor warranty.electronicsforless.ca is a registered Onkyo Canada dealer.
