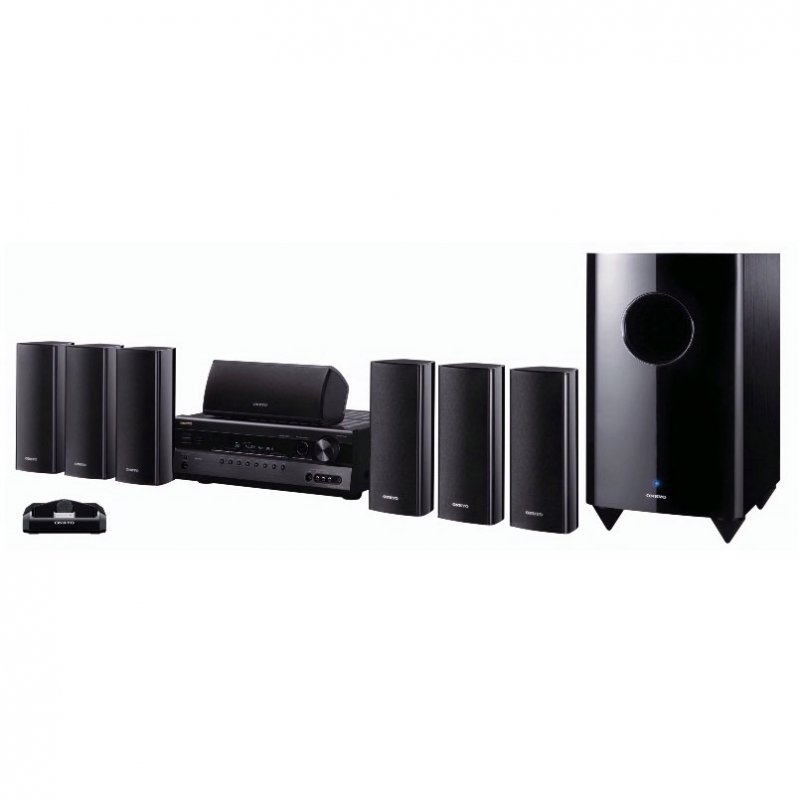

Onkyo HT-S6300 7.1-Channel Home Theater 3D HDMI Support (V1.4a)

Brand New · Factory Sealed · Onkyo Authorized Dealer

$899.00

end of _buybox_price

Free Canada-wide Shipping • Ships out in 2 business days

end of _buybox_shipping end of _buybox_core.php

$100/mo over 9 months

end of _payments end of _buybox_coupon

end of _xwarranty

Supplier Stock Available
Free shipping
2yr Manufacturer Warranty
5% Price Promise

Trusted by 150,000+ Canadian customers since 2001

Ask an Audio Expert Real answers from EFLC product specialists

end of _buybox_trust

Redefining Cost-Performance in Packaged Home Theater

If you’re looking to flesh out your movies, games, and music with lifelike, full-blooded surround sound, look no further than the HT-S6300. Think: quality on a budget. This feature-packed system sports four of the latest HDMI 1.4a inputs to handle your Blu-ray player and other high-definition devices. Non-HD video sources, meanwhile, can be upscaled to spectacular widescreen 1080p via HDMI and Faroudja DCDi Cinema ™. HDMI 1.4a is compatible with upcoming 3D video content and enables a handy Audio Return Channel from your display’s tuner back to the receiver. Audio processing on the HT-S6300 includes the “in the studio” realism of DTS-HD Master Audio and Dolby®TrueHD; Dolby®Pro Logic IIz for ambient height channels; Audyssey room-correction and equalization technologies; and four proprietary DSP modes to match your gaming content. Other Onkyo exclusives include a Universal Port for peripherals such as the included Dock for iPhone/iPod, and a new overlaid graphical on-screen display. So go ahead. Immerse yourself in Onkyo...

Special Features

Four 1080p capable HDMI inputs (V1.4a) supporting 3D video and Audio Return Channel
Total 1200W with a Powerfull 10-inch 290W Powered Subwoofer
1080p scaling via Faroudja DCDi Cinema
WRAT technology and discrete amp construction for cleaner sound
4 DSP Gaming Modes: Rock, Sports, Action, and Role Playing
Includes dedicated RI iPod dock (UP-A1) which supports the following iPods:
- 4th Gen iPod
- 4th Gen iPod (color display)
- iPod Photo
- iPod video
- iPod Classic (80, 120 and 160GB)
- 1st - 5th Gen iPod Nano
- 1st, 2nd and 3rd Gen iPod Touch
- iPhone, iPhone 3G and iPhone 3GS

RECEIVER
Amplifier Section
Power Output	-
Front L/R	130 W/Channel (6 ohms, 1 kHz)
Center	130 W (6 ohms, 1 kHz)
Surround L/R	130 W/Channel (6 ohms, 1 kHz)
Surround Back L/R	130 W/Channel (6 ohms, 1 kHz)
Dynamic Power	180 W (3 ohms) 160 W (4 ohms) 100 W (8 ohms)
THD (Total Harmonic Distortion)	0.08% (1W)
Damping Factor	60 (Front, 1 kHz, 8 ohms)
Input Sensitivity and Impedance	200 mV/47 k-ohms (Line)
Output Level and Impedance	200 mV/2.2 k- ohms (Rec out)
Frequency Response	5 Hz–100 kHz/ +1 dB, -3 dB (Direct mode)
Tone Control	±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio	106 dB (Line, IHF-A)
Speaker Impedance	6 ohms–16 ohms
Video Section
Input Sensitivity/Output Level and Impedance	-
Video	1.0 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 0.28 Vp-p/75 ohms (S-Video C, PR/CR) 1.0 Vp-p/75 ohms (Composite)
Component Video Frequency Response	5 Hz–50 MHz (-3 dB)
Tuner Section
Tuning Frequency Range	-
FM	87.5 MHz–107.9 MHz
AM	530 kHz–1,710 kHz
FM/AM Preset Memory	40 stations
General
Power Supply	AC 120 V, 60 Hz
Power Consumption	4.9 A
Standby Power Consumption	-
Dimensions (W x H x D)	17 1/8" x 5 15/16" x 12 15/16" (435 x 151.5 x 329 mm)
Weight	19.0 lbs. (8.6 kg)
SPEAKERS
Speaker Type	-
Front/Center	2-way (acoustic suspension)
Surround	Full-Range (acoustic suspension)
Surround Back	Full-Range (acoustic suspension)
Subwoofer	Bass reflex powered
Drivers	-
Front	4" (10 cm) cone woofer x 2 1" (2.5 cm) balanced-dome tweeter
Center	4" (10 cm) cone woofer x 2 1" (2.5 cm) balanced-dome tweeter
Surround	3 1/4" (8 cm) cone
Surround Back	3 1/4" (8 cm) cone
Subwoofer	10" (25 cm) cone
Frequency Response	-
Front/Center	60 Hz–50 kHz
Surround	90 Hz–20 kHz
Surround Back	90 Hz–20 kHz
Subwoofer	25 Hz–150 Hz
Output Sound Pressure Level	-
Front	81 dB/W/m
Center	81 dB/W/m
Surround	79 dB/W/m
Surround Back	79 dB/W/m
Subwoofer	-
Max. Input Power	-
Front/Center/Surround	130 W
Surround Back	130 W
Subwoofer	-
Max. Output Power	-
Subwoofer	290 W
Nominal Impedance	-
Front/Center/Surround	6 ohms
Surround Back	6 ohms
Subwoofer	-
Input Sensitivity/Impedance	-
Subwoofer	140 mV/20 k-ohms
General
Dimensions (W x H x D)	-
Front	4 3/4" x 11 7/16" x 4" (120 x 290 x 102 mm)
Center	11 7/16" x 4 13/16" x 4 7/16" (290 x 122 x 113 mm)
Surround	4 3/4" x 11 7/16" x 4" (120 x 290 x 102 mm)
Surround Back	4 3/4" x 11 7/16" x 4" (120 x 290 x 102 mm)
Subwoofer	10 13/16" x 19 15/16" x 16 3/16" (275 x 507 x 411 mm)
Weight	-
Front	2.4 lbs. (1.1 kg)
Center	2.4 lbs. (1.1 kg)
Surround	1.8 lbs. (0.8 kg)
Surround Back	1.8 lbs. (0.8 kg)
Subwoofer	25.6 lbs. (11.6 kg)

Description image for Onkyo HT-S6300 7.1-Channel Home Theater 3D HDMI Support (V1.4a)

Two-Year Manufacturer's Warranty

This item is features a two-year parts and labor warranty.

Product Details

Onkyo HT-S6300
Brand New : Factory Sealed
UPC : 751398009488
