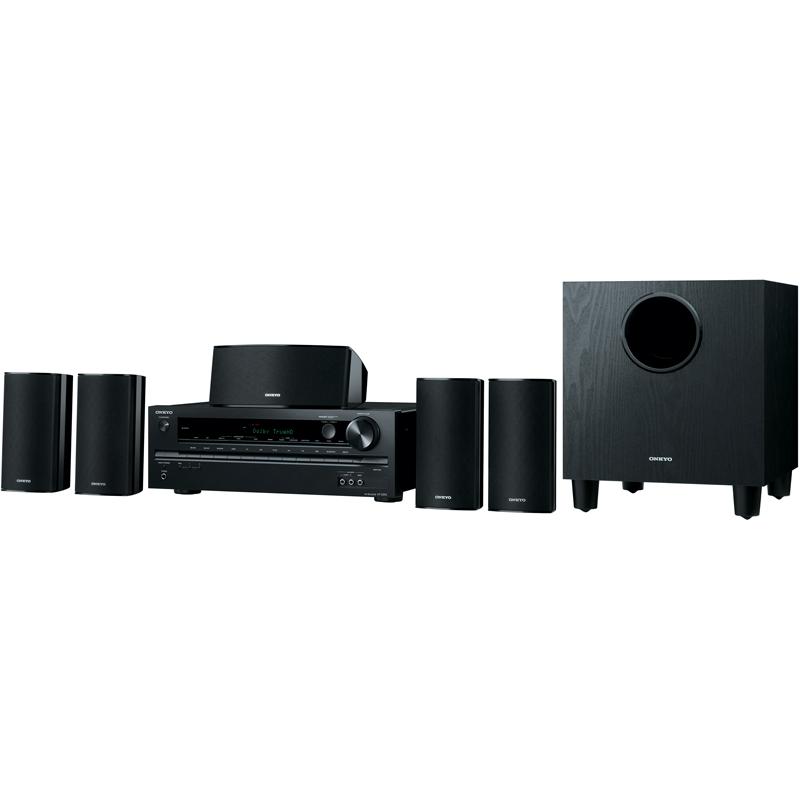

Authentic 5.1-Channel Sound To Transform Your Entertainment

It's powerful, it's loaded with the latest connections, and it's ready to launch you on a high-resolution sonic adventure. The HT-S3700 has everything needed to supercharge music, movies, and games. Dynamic high-current amplification has muscle to fill your rooms with clean and punchy sound and smoothly handles the Dolby® TrueHD and DTS-HD Master Audio™ soundtracks featured on Blu-ray Disc. There are six of the new 4K/60 Hz HDMI® 2.0 inputs to connect all your media players and gaming consoles, an HDMI output with ARC to add surround sound to broadcast TV, and DSP-optimized Bluetooth for wireless music streaming from smartphone, tablet, or laptop. With the stylish full-range speakers and subwoofer hooked up, you'll find your new home theater is easy to use thanks to overlaid setup menus and selectable listening modes for different types of content. The compact Onkyo HT-S3700 package has serious hi-fi credentials with convenience and features you can't beat at its price.

Supporting Next Generation HDMI 2.0

Imagine playing the latest blockbuster game or movie on your Ultra HDTV at a breathtaking 60 frames per second. Now add thunderous 5.1-channel surround sound from Onkyo. With every HDMI terminal on your receiver supporting HDMI 2.0 4K/60 Hz, all this and more is possible. Even if you're not planning on upgrading your current display right away, it's good to know your Onkyo receiver is ready for the future of gaming and video entertainment.

Built-In Bluetooth

The HT-S3700 has built in Bluetooth 2.1 + EDR with DSP optimization for wireless audio streaming from your smartphone or PC. No wires, no dongles, no mess. Just pair your Bluetooth-capable device and stream directly to your home theater. With Advanced Music Optimizer DSP compensating for compression, music via Bluetooth sounds better than ever.

Authentic High-Fidelity Amplification

Onkyo's Wide Range Amplifier Technology (WRAT) is designed for high current delivery. High instantaneous current is needed to maintain control of the speaker drivers for precise yet musical audio reproduction, from delicate piano passages to the thunderous roar of an action movie soundtrack. Backed by a massive high-output transformer, the amplifiers feature a discrete low-impedance output stage with high-current transistors for instantaneous power and very low distortion. The resulting sound is detailed, dynamic, and highly realistic for both stereo and multichannel listening.

High-Res Audio Processing

There's nothing quite like plunging into a high-resolution studio-master 5.1-channel movie soundtrack. Your HT-S3700 can decode and play Dolby TrueHD and DTS-HD Master Audio formats via HDMI for a thrilling surround-sound experience. A 32-bit DSP chip and high-quality 192 kHz/24- bit TI Burr-Brown DAC smoothly and efficiently decode all the lossless and high-resolution formats common to DVD and Blu-ray.

Play Lossless and Hi-Res Music via USB

If you prefer a wired connection, the rear-panel USB port is ready to accept a range of audio formats from mass- storage class disks. As well as MP3 and AAC, you can play FLAC and WAV up to 192 kHz/24-bit resolution, Apple Lossless and 5.6 MHz DSD. Alternatively, you can connect your PC, smartphone, tablet, or media player via the digital or analog audio inputs.

Zone 2 Line-Out for Multi-Room Audio

The Zone 2 line-level output lets you enjoy music from the source devices connected to your A/V receiver via the analog audio inputs in another area of your home. Connect a power amp and a pair of speakers, set them up in your kitchen, garage, or even out on the deck and listen to CDs and radio playing via your A/V receiver.

System

• # Channels : 5.1
• Total System Power : 660W
• Power (6 ohms, 1kHz, 0.7%)/Ch : 110W/ch x 5ch
• Sub Power : 110W (Passive)
• THX Certified : -
• All Discrete Amplifier Circuitry : ✓
• Speaker A/+B : -

Processing

• Dolby Atmos Ready : -
• 32-Bit Digital Signal Processing Engine : ✓
• Dolby Decoder : TrueHD, DD Plus
• DTS Decoder : DTS-HD Master Audio, HD-High Resolution Audio, NEO:6
• ONKYO GAME Surround Modes : ✓
• AccuEQ : -
• Advanced Music Optimizer : ✓ (Bluetooth Included)
• Phase-Matching Bass Boost : ✓ (for Deep Bass and Clear Mid-Range)
• 192K/24 Bit DACs : ✓ (Burr-Brown)
• Bluetooth : ✓ (Built-in)

Connectivity

• Audio I/O : 7 / 0
• Digital Audio IN (OPT/COAX) : 1 / 2
• Digital Audio OUT (OPT/COAX) : -
• Composite I/O : 4 / 1
• USB Input : Rear
• Component Video I/O : 1 / 1
• HDMI I/O : 6 / 1
• HDMI 2.0 4K/60 Hz- Capable HDMI Terminals : ✓
• HDCP 2.2 Copy-Protection Compatibility : -
• HDMI Support for 3D, Audio Return Channel and CEC : ✓
• HDMI Support for Deep Color, x.v.Color, LipSync : ✓
• HDMI Support for DVD-Audio, SACD, Multichannel PCM : ✓
• InstaPrevue Input Source Prevue : ✓
• MHL for Mobile Device Connection : -
• Component Video Upconversion : -
• Analog To HDMI UpConversion : -
• 1080p Upscaling : -
• 4K (up to 4096 x 2160) Upscaling : -
• 4K Passthrough : ✓
• Zone 2 : Line-Out
• iPod Ready : ✓ (via optional DS-A5)
• Airplay Ready : ✓ (via optional DS-A5)
• Supports Onkyo Remote App : -
• Internet Radio Capable : -
• Streaming Audio From PC / Network : -
• Streaming Audio Formats : -
• Streaming Audio From USB memory : ✓
• Wireless Network : -

Speaker

• Front Speaker : Full-Range (Bass Reflex)
• Center Speaker : Full-Range (Bass Reflex)
• Surround Speaker : Full-Range (Bass Reflex)
• Surround Back Speaker : -
• Subwoofer : 8" Down Firing
• Cabinet Type : Gloss Finished Exterior
• Miscellaneous
• Pre-Pro/Learning Remote : - / ✓
• On Screen Remote Programming : -
• Color-Coded Speaker Terminals : ✓
• Auto Speaker Calibration W/Mic. : -
• OSD Out : ✓ (Basic Overlay)
• Warranty : 2 YEARS

Amplifier Section

• Power Output : subtitle
• All Channels : 115 W/Channel (6 Ohms, 1 kHz, 1%, 1 Channel Driven, FTC)
• Dynamic Power (front) : 160 W (3 Ohms)
  125 W (4 Ohms)
  85 W (8 Ohms)
• THD+N (Total Harmonic Distortion + Noise) : 0.08% (20Hz-20kHz, Half Power)
• Damping Factor : 60 (Front, 1 kHz, 8 Ohms)
• Input Sensitivity and Impedance : 200 mV/47 k-ohms (Line)
• Output Level and Impedance : 200 mV/2.2 k-ohms (Line Out)
• Frequency Response : 5 Hz100 kHz/ +1 dB, -3 dB (DSP Bypass)
• Tone Control : 10 dB, 50 Hz (Bass)
  10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio : 100 dB (Line, IHF-A)
• Speaker Impedance : 6 Ohms16 Ohms

Video Section

• Input Sensitivity/Output Level and Impedance : subtitle
• Video : 1.0 Vp-p/75 Ohms (Component Y)
  0.7 Vp-p/75 Ohms (Component PB/CB, PR/CR)
  1.0 Vp-p/75 Ohms (Composite)
• Component Video Frequency Response : 5 Hz100 MHz (-3 dB)

Tuner Section

• Tuning Frequency Range : subtitle
• FM : 87.5 MHz107.9 MHz
• AM : 530 kHz1,710 kHz
• FM/AM Preset Memory : 40 stations

General

• Power Supply : AC 120 V, 60 Hz
• Power Consumption : 3.8 A
• Standby Power Consumption : subtitle
• Dimensions (W x H x D) : 17 1/8" x 5 7/8" x 12 5/8" (435 x 150 x 321 mm)
• Weight : 16.8 lbs. (7.6 kg)

Speaker - Speaker Type

• Front/Center : Full-Range, Bass Reflex
• Surround : Full-Range, Bass Reflex
• Surround Back : -
• Subwoofer : Bass Reflex

Speaker - Drivers

• Front : 3 1/4" (8 cm) Cone
• Center : 3 1/4" (8 cm) Cone
• Surround : 3 1/4" (8 cm) cone
• Surround Back : 3 1/4" (8 cm) cone
• Subwoofer : 8" (20 cm) cone

Speaker - Frequency Response

• Front/Center : 80 Hz20 kHz
• Surround : 80 Hz20 kHz
• Surround Back : -
• Subwoofer : 30 Hz150 Hz

Speaker - Output Sound Pressure Level

• Front : 80 dB/W/m
• Center : 80 dB/W/m
• Surround : 80 dB/W/m
• Surround Back : -
• Subwoofer : 83 dB/W/m

Speaker - Max. Input Power

• Front/Center/Surround : 120 W
• Surround Back : -
• Subwoofer : 130 W

Speaker - Max. Output Power

• Subwoofer : 110 W

Speaker - Nominal Impedance

• Front/Center/Surround : 6 Ohms

Speaker - Dimensions (W x H x D)

• Front : 4" x 7 7/8" x 4 1/2" (101 x 200 x 114 mm)
• Center : 9 7/16" x 4" x 4 3/4" (240 x 102 x 121 mm)
• Surround : 4" x 7 7/8" x 4 1/2" (101 x 200 x 114 mm)
• Subwoofer : 11 5/8" x 13 9/16" x 14 1/2" (295 x 345 x 368 mm)

Speaker - Weight

• Front : 1.5 lbs. (0.7 kg)
• Center : 1.8 lbs. (0.8 kg)
• Surround : 1.5 lbs. (0.7 kg)
• Surround Back : -
• Subwoofer : 14.1 lbs. (6.4 kg)

UPC Code : 751398011986
