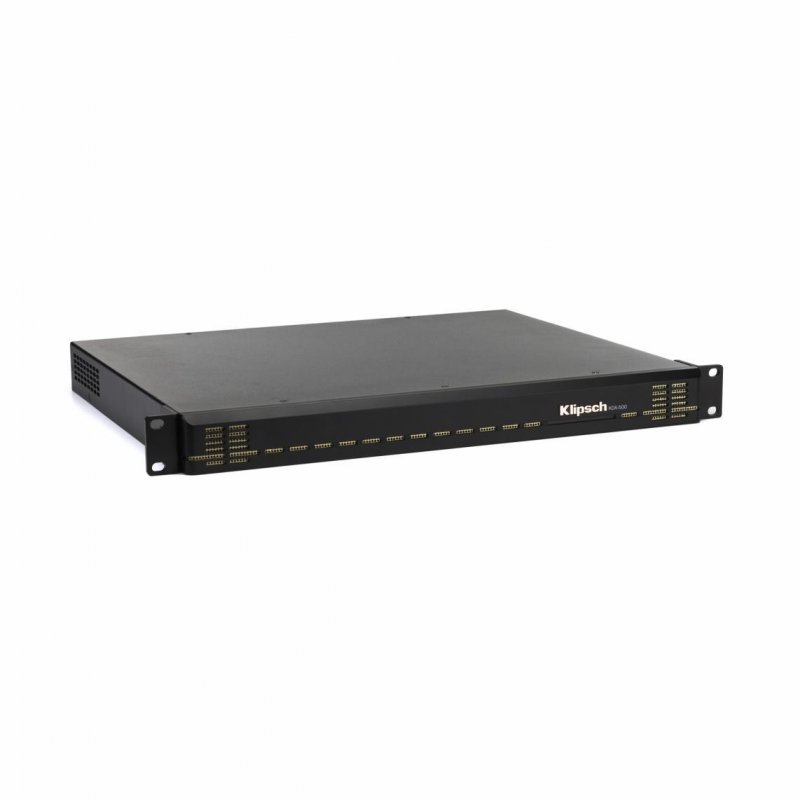

Klipsch KDA-500 4 In x 4 Out 500W DSP Amplifier
The Klipsch KDA-500 is a powerful and flexible DSP amplifier designed for both residential and commercial installations. Delivering 500 watts of Class G/H amplification with fully matrixed 4x4 I/O, it provides clean, dynamic performance and advanced system control for distributed audio environments.
With support for both low impedance and 70V/100V systems, independent channel configuration, and robust DSP tuning capabilities, the KDA-500 is built to handle everything from simple home setups to complex multi-zone installations.
Features
- 500W total system power with Class G/H amplification
- 4 In x 4 Out fully matrixed DSP architecture
- Supports both low impedance and 70V/100V distributed audio systems
- Independent channel impedance configuration for flexible installations
- Balanced Phoenix inputs and speaker outputs for professional connections
- RCA line-level inputs and outputs (throughputs) included
- Supports up to 12 AWG speaker wire connections
- Advanced DSP control with EQ, gain, limiting, and delay settings
- Web-based DSP interface for easy configuration via browser
- Password-protected channel assignments and system tuning
- Wireless control via network connection
- Compact rack-mountable design for installation flexibility
Specifications
Amplifier
- Amplifier Type: High Efficiency Class G/H
- Total Power Output: 500 W
- Power Output: 4 x 125 W per channel
Inputs
- Balanced: 4 x Phoenix Line Level (up to 12 AWG wire)
- Unbalanced: 4 x RCA Line Level
- Input Sensitivity: 750 mV (Balanced), 0 dBu
- Input Impedance: 40kΩ (Balanced)
Outputs
- 4 x Phoenix Speaker Outputs (up to 12 AWG wire)
- 4 x RCA Line Level (Throughputs)
Performance
- Total Harmonic Distortion (THD): 1% @ Rated Output
- Signal-to-Noise Ratio: -100 dB below rated output
Build
- Front Panel: ABS Plastic
- Chassis: Machine-Formed Steel
- Rack Size: 1RU
Dimensions & Weight
- Dimensions (W x H x D): 483 x 44 x 363 mm
- Product Weight: 6.82 kg
Installation
- Mounting: Removable 1RU Rack Ears
- Feet: Removable Rubber Feet
Additional Information
- Part Numbers: 1063257 (120V), 1063260 (230V)
- Year Introduced: 2016
What’s in the Box
- Klipsch KDA-500 Amplifier
- Rack Mount Ears
- Power Cable
- User Documentation
Product Details
- Klipsch KDA500
-
Brand New : Factory Sealed
- UPC : 743878030242
- EFLC : 7926
