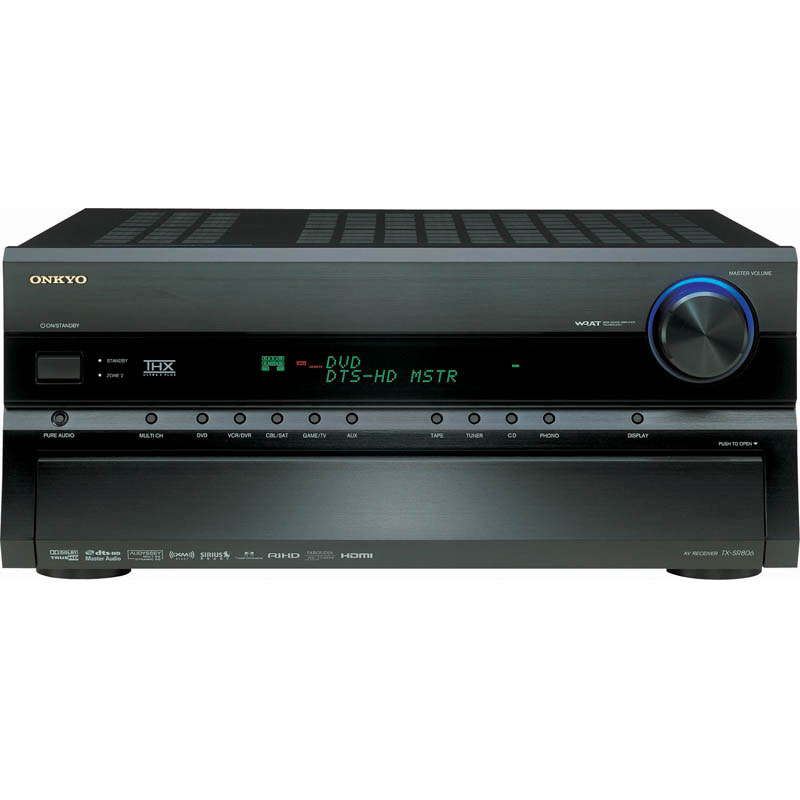

A Mid-Range Receiver Breaking into High-End Territory with Advanced High-Def Audio and Video Processing

The TX-SR806 occupies a unique position in the Onkyo line-up.We class it as a mid-range A/V receiver. But with its advanced capabilities and THX Ultra2 Plus certification, it’s a worthy challenger for high-end status. Built with high-definition entertainment in mind, the TX-SR806 accommodates up to five HDMI™ sources that can handle both 1080p video and studio master-quality surround sound.That’s more high-def sources than you’ll find on any other Onkyo A/V receiver. If that weren’t enough, onboard Faroudja DCDi Cinema™ scales all standard definition sources to 1080p for HDMI output, or to 1080i for component video output. Endowed with the amplification power and dependability expected from an Onkyo A/V receiver, the TX-SR806 stands out as a natural choice for highperformance home theater.

• 130W/Ch x 7 ch
• THX Ultra 2 Plus certified
• HDMI V1.3 repeater (5in/1out, 1080p compatible), w/HDMI video up-conversion
• Dolby Digital Plus, Dolby TrueHD and DTS-HD decoding

Amplifier

• 7.1 Channels

• Power (8ohms 20-20kHz 0.08%) /Ch 130W
• Power (8ohms 1kHz 0.7%) /Ch 150W
• THX Certified (Ultra2 Plus)
• Continuous 6ohms Rated
• Certified 4ohms performance
• High Instantaneous Current Capability 36A
• Amplifier Frequency Response 5Hz-100kHz
• S/N Ratio (LINE IN) 106 dB
• All Discrete Circuitry
• Absolute Ground Plate
• Bi-amp Capability For Front

Processing

• DOLBY Decoder DD Plus, TrueHD
• DTS Decoder DTS-HD Master Audio
• THX Processing Mode
• DSD Processing
• Direct/Pure Mode
• Music Optimizer
• Audyssey Dynamic EQ
• 192K/24 Bit DACs
• DSP Type / QTY 32 BIT / 2
• Adjustable Crossover 40/50/60/70/80/90/100/120/150/200Hz
• Independent Crossover
• AV Sync
• Accurate Speaker Distance Setting
• Multi-Band Speaker EQ 5 Band

Connectivity

• Audio I/O 8 / 2
• Phono Input
• Digital Audio IN (OPT/COAX) 3 / 3
• Composite I/O 5 / 1
• S-Video I/O 5 / 1
• Front-Panel A/V L / R / V / S
• Front-Panel Optical
• Component Video / Bandwidth 2 / 1 / 50MHz
• HDMI I/O 5 / 1
• HDMI Version V1.3a
• HDMI Bandwidth 1080p
• HDMI Deep Color Capable (36bit)
• Component Video Upconversion
• Analog to HDMI Upconversion
• 480i to 480p Processing (DCDi Cinema)
• 1080i Upscaling (DCDi Cinema)
• 1080p Upscaling (DCDi Cinema)
• Multi-Channel Input 7.1
• Surround Pre-Outs 7.1
• Powered Zone2

• Zone 2 Line Out

• iPod Ready (DS-A2x, DS-A2, DS-A1)
• XM Radio Ready (must have XM account)

• SIRIUS Radio Ready (must have SIRIUS account)


Integration Access

• RS-232

• IR Input

• ONKYO-RI System Control

• 12V Trigger (Zone2)

Miscellaneous

• Pre-Pro/Learning Remote
• Glossy Black finished Remote
• Simple Remote to change input & mode
• Color-Coded Speaker Terminals
• Auto Speaker Calibration W/Mic. (Audyssey Multi EQ)
• OSD Out
• Input Name Edit
• Permanent Memory Storage
• Solid Aluminum Front (with door)
• Detachable AC Cord
• Warranty 2 YEARS

Product Specifications

Amplifier Section

Power Output

• Front L/R
• 130 W + 130 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)
• 145 W + 145 W (8 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
• 160 W + 160 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
• Center
• 130 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)
• 145 W + 145 W (8 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
• 160 W + 160 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
• Surround L/R
• 130 W + 130 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)

• 145 W + 145 W (8 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
• 160 W + 160 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
• Surround Back
• L/R 130 W + 130 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)
• 145 W + 145 W (8 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
• 160 W + 160 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)

Dynamic Power

• 300 W (3 ohms, 1 ch)
• 250 W (4 ohms, 1 ch)
• 150 W (8 ohms, 1 ch)

THD (Total Harmonic Distortion)

• 0.08% (Rated power)

Damping Factor

• 60 (Front, 1 kHz, 8 ohms)

Input Sensitivity and Impedance

• 200 mV/47 k-ohms (Line)
• 2.5 mV/47 k-ohms (Phono MM)

Output Level and Impedance

• 200 mV/470 ohms (Rec out)

Phono Overload

• 70 mV (MM, 1 kHz, 0.5%)

Frequency Response

• 5 Hz–100 kHz/+1 dB, -3 dB (Direct mode)

Tone Control

• ±10 dB, 50 Hz (Bass)
• ±10 dB, 20 kHz (Treble)

Signal-to-Noise Ratio

• 110 dB (Line, IHF-A)

Speaker Impedance

• 4 ohms–16 ohms or 6 ohms–16 ohms


Video Section

• Input Sensitivity/Output Level and Impedance

Video

• 1 Vp-p/75 ohms (Component and S-Video Y)
• 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR)
• 0.28 Vp-p/75 ohms (S-Video C)
• 1 Vp-p/75 ohms (Composite)

Component Video Frequency Response

• 5 Hz–50 MHz (-3 dB)

Tuner Section

Tuning Frequency Range

• FM 87.5 MHz–107.9 MHz
• AM 530 kHz–1,710 kHz

FM/AM Preset Memory

• 40 stations


General

Power Supply

• AC 120 V, 60 Hz

Power Consumption

• 7.8 A

Dimensions (W x H x D)

• 17 1/8" x 7 5/8" x 16 15/16"
• (435 x 194 x 431 mm)

Weight

• 37.5 lbs. (17.0 kg)


Exclusive Five-Year Limited Warranty

Parts and labor serviced by Onkyo Canada for the duration of five-year warranty.

Five year warranty includes Onkyo standard manufacturer two-year warranty plus three additional years for free! ($100.00 value).
