Network

Yamaha AV Receivers are the perfect control centers for a home entertainment network. Their network functions include support for FLAC 96/24 (high quality lossless format), compatibility with Windows7 and DLNA 1.5 (for finding and playing digital sources) and web browser control from a PC or PDA.

View Products that use Network

AirPlay

View Products that use AirPlay

DLNA Technology

The DLNA Certification and Logo Program: (a) ensures that all relevant mandatory formats and features are supported by the products, and (b) confirms interoperability between devices in support of mandatory formats and features. DLNA Certified is a trademark of the Digital Living Network Alliance.

View Products that use DLNA Technology

Made for iPod/iPhone/iPad

4K Pass-Through

4K Pass Through receives super high-def resolution video and pass it to a 4K compatible monitor. This ensures compatibility with the latest super high resolution video formats.

View Products that use 4K Pass-Through

4K Upscaling

Dolby TrueHD

Dolby TrueHD is an advanced lossless audio technology developed for high-definition disc-based media including Blu-ray Disc. Selected as an optional audio standard for Blu-ray Disc, this technology delivers sound that is bit-for-bit identical to the studio master, offering a high-definition home theater experience. Supporting bitrates up to 18.0 Mbps, Dolby TrueHD can carry up to 8 discrete channels of 24-bit/96 kHz audio simultaneously. Dolby TrueHD also remains fully compatible with the existing multichannel audio systems and retains the metadata capability of Dolby Digital, allowing dialog normalization and dynamic range control.
Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories.

View Products that use Dolby TrueHD

DTS HD Master Audio

DTS-HD Master Audio is an advanced lossless audio technology developed for high-definition disc-based media including Blu-ray Disc. Selected as an optional audio standard for Blu-ray Disc, this technology delivers sound that is bit-for-bit identical to the studio master, offering a high-definition home theater experience. Supporting bitrates up to 24.5 Mbps for Blu-ray Disc, DTS-HD Master Audio can carry up to 7.1 discrete channels of 24-bit/96 kHz audio simultaneously. Supported by HDMI version 1.3 and designed for the optical disc players and AV receivers/amplifiers of the future, DTS-HD Master Audio also remains fully compatible with the existing multichannel audio systems that incorporate DTS Digital Surround.
DTS is a registered trademark and the DTS logos, Symbols, DTS-HD and DTS-HD Master Audio are trademark of DTS, Inc.

View Products that use DTS HD Master Audio

CINEMA DSP 3D mode

The actually measured sound field data contain the information of the height of the sound images. CINEMA DSP 3D mode achieves the reproduction of the accurate height of the sound images so that it creates the accurate and intensive stereoscopic sound fields in a listening room.

View Products that use CINEMA DSP 3D mode

YPAO Automatic System Calibration

Yamaha’s YPAO system uses a small microphone and sophisticated equalization to automatically set the best sound for any room, no matter where the speakers are. First it checks the speaker connections and phase of each speaker. Then it sends out tones which are captured by the microphone to analyze the room acoustics and sets a variety of parameters, such as the speaker size, the distance of the speakers and even the sound pressure level, etc. Until it achieves the best sound conditions for your room and you don't have to do anything!

View Products that use YPAO Automatic System Calibration

SCENE – A NEW LEVEL OF OPERATING EASE

With most AV components, watching or listening to what you want requires a number of steps. You have to turn on the AV component, turn on another component like a DVD player, select the source, select the surround mode and then press play. But with Yamaha’s SCENE feature all you need to do is press one button. Both components turn on, the correct DSP setting is made, and play begins. This SCENE function allows you to change input sources and sound field programmes with one button. Four SCENE buttons are available for different usages, such as playing movies or music.

View Products that use SCENE – A NEW LEVEL OF OPERATING EASE

Compressed Music Enhancer

Yamaha employs sophisticated digital signal processing with exclusive algorithms to enable playback that improves the performance of compressed music formats, including MP3 and WMA. With the Compressed Music Enhancer, highs and especially lows are richer and smoother, bringing music back to life to be as close to the original as possible.

View Products that use Compressed Music Enhancer

VIRTUAL Presence Speaker

Virtual Presence Speaker mode provides the 3D sound without front presence speakers. Tell customers that the best way to enjoy 3D movies at home is with sound from a Yamaha AV Receiver equipped with CINEMA DSP 3D.

View Products that use VIRTUAL Presence Speaker

SILENT CINEMA

Yamaha has developed a natural, realistic sound effect DSP algorithm for headphones. Parameters for headphones have been set for each sound field so that accurate representations of all the sound field programs can be enjoyed on headphones.

View Products that use SILENT CINEMA

ECO mode

ECO mode reduces power consumption by about 20%*. It can be set easily from the top of the GUI/OSD menu.
*Compared to power consumption when ECO mode is off. (Yamaha measurement).

View Products that use ECO mode

Zone2

This unit allows you to configure a multi-zone audio system. The Zone2 feature allows you to set this unit to reproduce separate input sources in the main zone and the second zone (Zone2). You can control this unit from the second zone using the supplied remote control.

View Products that use Zone2

HDMI

HDMI (High-Definition Multimedia Interface) is the first industry supported, uncompressed, all-digital audio/video interface. Providing an interface between any source (such as a set-top box or AV receiver) and an audio/video monitor (such as a digital television), HDMI supports standard, enhanced or high-definition video as well as multichannel digital audio using a single cable. HDMI transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements and requirements. When used in combination with HDCP (High-bandwidth Digital Content Protection), HDMI provides a secure audio/video interface that meets the security requirements of content providers and system operators. For further information on HDMI, visit the HDMI website at “http://www.hdmi.org/”.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

View Products that use HDMI

[ Video Features ] 4K Pass-Through and Upscaling Supports Latest High Resolution Video Formats

This AV receiver's HDMI input/output supports 4K video image pass-through. It also can perform 4K upscaling to boost a lower resolution image to super high-def resolution. This ensures compatibility with the latest super high resolution video formats.

HDMI with 3D and Audio Return Channel

3D means the receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable, so you can hear the sound from the TV via a single HDMI cable, with no need for an extra optical cable.

High Quality Video Processing with Edge Adaptive Deinterlacing

In ordinary deinterlacing, pixels in areas of movement are interpolated by upper and lower ranges. This causes jaggies in diagonal lines. Edge adaptive deinterlacing detects the direction of the line and interpolates the pixels optimally.

Other Notable Video Features

• 4K / full HD 1080p video upscaling from analog and HDMI input
• Supports Deep Color (30/36 bit), x.v.Color, 24 Hz Refresh Rate and Auto Lip-Sync compensation

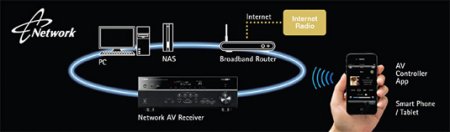

[ Advanced Features ] Network Functions

This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet Radio and operate your system via Web Browser Control. The AV Controller app (from iTunes App Storeor Android Market) lets you control various functions from your iPod, iPhone, iPad or Android phones.

AV Controller App for Easy, Convenient Operation

This AV Receiver lets you use the Yamaha AV Controller app that is downloadable from the iTunes App Store or Android Market to control power on/off and volume, select input and DSP modes and operate other functions from an iPod, iPhone, iPad or Android phones. A tablet version is also available.

AirPlay Allows Streaming Music to AV receiver

This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod touch, iPhone or iPad, as well as from iTunes on Macs or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theater system. You can use view metadata such as song title, artist name as well as album art* via AV receiver's on-screen display. *Some models don't support album art display.

USB Digital Connection for iPod, iPhone and iPad on the Front Panel

A USB port on the front panel allows convenient connection of an iPod/iPhone/iPad, which also charges when connected. Because the digital signal from the iPod/iPhone/iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver’s remote control unit to operate the iPod/iPhone/iPad music playback functions.

YPAO-R.S.C. (Reflected Sound Control) Sound Optimization

YPAO-R.S.C. analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalization, which varies the CINEMA DSP parameters according to the reflected sounds.

Advanced Multi-Language GUI On-Screen Display

Yamaha’s latest Graphical User Interface has a high resolution display with clear, easy-to-use menus and also includes a selectable Status Bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of seven languages: English, French, German, Japanese, Russian, Spanish and Chinese, and can be displayed over both normal and 3D pictures.

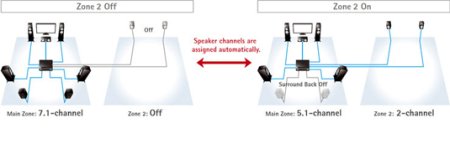

Intelligent Amp Assign

Intelligent Amp Assign automatically assigns amplifier channels to certain speakers, depending on what functions are selected. For example, in a 7.1-channel system, when Zone 2 is off, all 7.1 channels will be used in the Main Zone. However, when Zone 2 is on, power to the two Surround Back channels will be directed to the two speakers in Zone 2, and the Main Zone will receive 5.1 channels of power. Similarly, when CINEMA DSP 3D is on, the two Front Presence speakers will be powered and not the two Surround Back speakers. When CINEMA DSP 3D is off, this situation is reversed. Thanks to Intelligent Amp Assign, there’s no need to switch the speaker cables on the rear of the receiver—one more way Yamaha makes your life a little easier.

SCENE for One-Touch Start

Pressing a SCENE button powers on the AV Receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.

HDMI Front Panel Input

In addition to the large number of HDMI inputs on the rear panel, there is also one on the front panel. This gives you a convenient way to quickly plug in a digital camera or camcorder for highest quality pictures.

HDMI CEC for Easy Operation

Another benefit of HDMI is the availability of CEC functionality. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV, and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver’s remote unit to control player functions like Skip and Stop. *All connected devices must be HDMI CEC compatible. Some CEC compatible TVs/players may not work.

Input Selection in HDMI Standby Through Mode

When the AV receiver is in HDMI Standby Through mode, the input source (Blu-ray™ Disc player, game console, etc.) for viewing on the monitor can be changed via the remote control. There’s no need to turn on the AV receiver in order to switch sources.

Other Notable Advanced Features

• Charging of iPod, iPhone and iPad via USB when AV Receiver is off
• iPod/iPhone song titles displayed in English and Western European languages on the front panel and on-screen display
• Audio input assign capability for HDMI and component video input
• Audio Delay for adjusting Lip-Sync (0-500 ms)
• Newly designed preset remote unit
• Background Video feature (for tuner and Net)

[ Surround Realism ] HD Audio with CINEMA DSP 3D and Virtual Presence Speaker

CINEMA DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers 3-dimensional sound without actual use of presence speakers.

Subwoofer Trim for Improved Sound Imaging

The Subwoofer Trim control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is “pushed” toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.

Dialogue Lift and Dialogue Level Adjustment for natural dialogue and vocals

Dialogue Lift raises the sound of dialogue from the center speaker to a position in the center of the screen. Newly developed virtual dialogue lift achieves dialogue lift function even without the need for presence speakers. Dialogue Level Adjustment lets you control the volume of the vocal sound, so you hear movie dialogue and music vocals at the ideal level for clear, comfortable listening.

Compressed Music Enhancer

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

Adaptive DRC (Dynamic Range Control)

Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialog and vocals, and all sound effects at comfortable levels. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials, and is ideal for low-volume, late-night listening, when you do not want to disturb others.

Other Notable Surround Realism

• Virtual dialogue lift even without use of presence speakers
• Virtual Presence Speaker function for CINEMA DSP 3D surround without Front Presence Speakers
• SILENT CINEMA and Virtual CINEMA DSP

[ Versatile Zone Control ]

• Zone 2 on/off and control on front panel
• Zone sleep and system sleep
• Remote input/output
• Programmable +12V trigger output

[ Eco-Friendly Design ] ECO mode lowers power consumption by 20%*

Yamaha’s new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu. * Compared to power consumption when ECO mode is off (Yamaha measurement).

Selectable Auto Power Down

Auto Power Down lets you save energy by selecting to turn off the power after 2, 4, 8 or 12 hours.

Low Standby Power Consumption

Yamaha makes its receivers eco-friendly with a low standby power consumption of 0.1W in IR Standby mode (3W in HDMI Standby Through mode, 2W in Network Standby mode).
