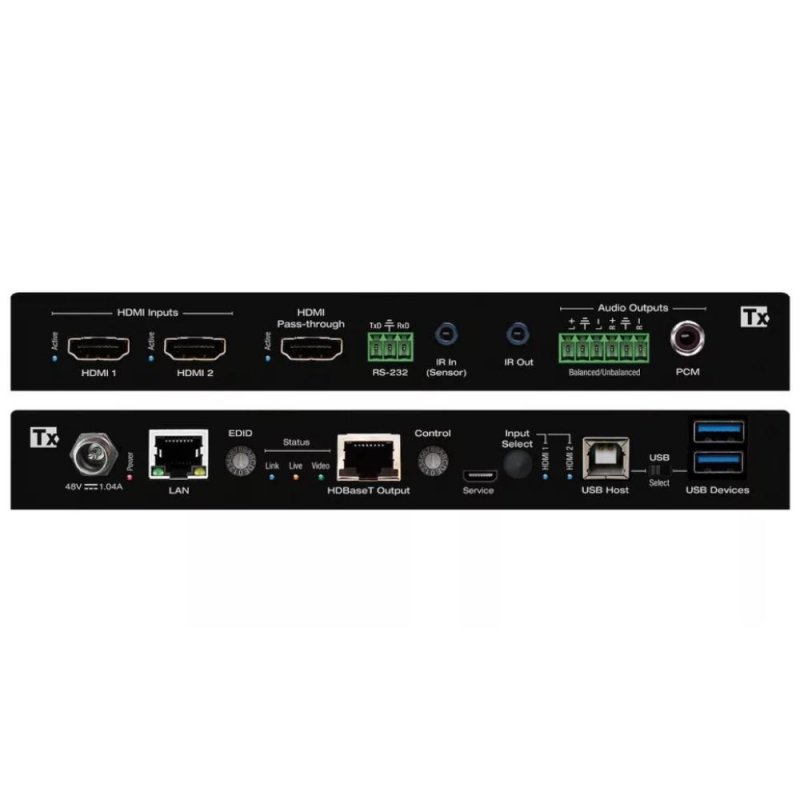

Key Digital KDPS22UTX 4K/18G 328 FT HDMI Transmitter
Brand New · Factory Sealed · Key Digital Authorized Dealer
$1,269.99
Free Canada-wide Shipping
•
Ships in 2 to 4 Days
end of _buybox_shipping
end of _buybox_core
end of _payments
end of _buybox_couponend of _xwarranty
- Available
- Free shipping
- 1yr Manufacturer Warranty
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001
4K/18G 328ft (100m) HDMI over HDBaseT Extender, 2x1 Switcher with 2 HDMI Inputs, 2 Mirrored Outputs (HDBaseT, HDMI), USB 2.0, LAN, Audio De-Embed, IR, RS-232, IP Control, PoH, CEC Manager ™. Tx Only.
Features:
- Presentation Switching: 2 HDMI Source selection by push button or IP control
- Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switchers
- Soft-Codec Enabling System: USB Host + Device ports on wall plate and chosen Rx / Presentation Switch create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
- KDPlug & Present: Add KD-CX800 to build programming-free automation system for room display on / off, screen control, auto switching, KD-CAMUSB PTZ camera, KD-AMP220 amp with mic mix, and common video source control
- Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- ARC / eARC: Audio may be returned from the connected display or Rx (KD-X100MRx) unit and output on the external analog & digital outputs
- Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate HDBaseT transmission channel
- 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
- Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled
- KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager ™
- HDCP Licensing: Fully licensed and compatible with HDCP 2.2
- HDR10: More life-like images through a greater range of luminance levels
- Power Over HDBaseT: Unit powered by Rx/Presentation Switch unit
- Signal Extension: For resolution and cable quality
- 4K/UHD (18G): Up to 100m / 328ft
- 1080p: Up to 150m / 492ft (Long Range Mode)
- Long Range Mode: Extends 1080p signals up to 152m (500 ft.) using CAT5e/6 (UHD/4K not supported)
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
- EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
- IR Bi-Directional control: Tx supports IR input via the included IR sensor and output via the included IR emitter
- RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
- Unit Control Mode: Provides TCP/IP control and status of/from Tx unit
- Surround Sound Audio: Supports Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio ™ multi-channel audio formats
- Control System Support: Key Digital® App Ready. Key Digital Management Software ™ Pro (KDMS ™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
Specifications:
Technical:
- Inputs: 2 HDMI, 1 IR Sensor, 1 Bi-Directional RS-232
- Outputs: 1 HDBaseT RJ45, 1 Bi-Directional RS-232, 1 IR output
- DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
- RJ45 Connector: Shielded Link Connector, HDBaseT
- IR Connectors: 1 IR sensor 3.5mm, 1 IR emitter 3.5mm
- RS-232 Connector: 3-pin phoenix terminal
General:
- Regulation: CE, RoHS, WEEE, EAC;
- Enclosure: Black Metal
- Product: 5.5 x 4.1 x 1.43" (200.3 x 153 x 25.4mm)
- Weight: 1 lbs
What's in the box:
- Power Supply (qty 1) 48V/1.04A, 50W, desktop type, model KDPS50W48VC
- IR sensor (qty 1)
- IR emitter (qty 1)
- L-Bracket (qty 2)
- Ear Mount Screw (qty 4)
- 6-pin phoenix terminal (qty 1)
- 3-pin phoenix terminal (qty 1)
- 6 ft USB Micro cable (qty 1)
- 6 ft USB A to B data cable (qty 1
Product Details
- Key Digital KDPS22UTX
-
Brand New : Factory Sealed
- UPC : 815996021546
- EFLC : 11984
- Write a review
Warranty
One Year Warranty
- Parts and Labour Warranty
- Canada-wide Coverage
- Key Digital Authorized
Returns
Easy Returns
- 14-day return window on eligible items
- Full refund issued in accordance with our return policy
