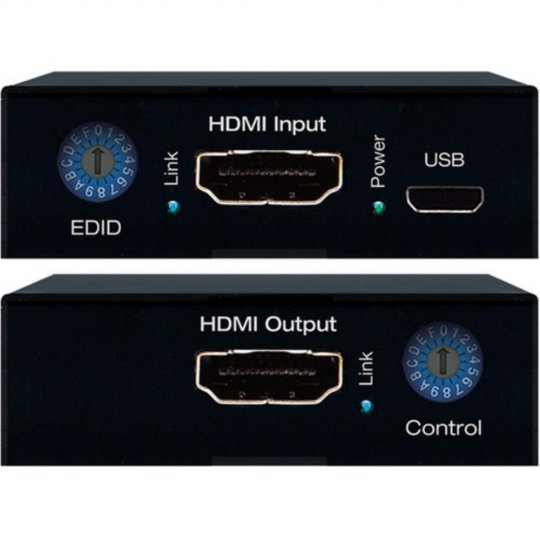

Key Digital KD-FIX418A 4K/18G HDMI Fixer

$369.99

Secure One-Page Checkout
Get 15 Miles When you spend $369.99. See details
Key Digital Authorised
This product is brand-new and factory sealed Key Digital KD-FIX418A  Available
UPC : 815996021041  5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back
Shipping : FREE in Canada Ships in 2 to 4 Days




To purchase now by phone, call toll-free: 1-888-248-4969. Item: 11946

$123/mo suggested payments with 3 month special financing now with Flexiti.Get Instantly approved for 0% financing


Features:

  • HDMI Correction: Resolves common HDMI integration obstacles related to Hot Plug Detection, EDID handshaking, HDCP authentication, and bandwidth
  • Audio De-embedding: HDMI input audio is de-embedded on an analog 3.5mm stereo and digital PCM connector
  • 18G Down-Convert: Incoming 18Gbps bandwidth HDMI signals may be downconverted for integration with existing 10.2Gbps systems/infrastructure
  • Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
  • Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, Hot Plug management, and EDID control handshake
  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display
  • Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™, and Dolby Atmos
  • ARC Pass-thru: From connected ARC supported display to connected ARC supported HDMI source
  • CEC Pass-thru: From connected display to selected HDMI source
  • Control: RS-232 control and connectivity status

Specifications:

Technical:

  • HDMI Input (Each): HDMI Connector, Type A, 19 Pin Female
  • HDMI Output: HDMI Connector, Type A, 19 Pin Female
  • HDMI Bandwidth: TMDS bandwidth 18Gbps
  • DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
  • HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
  • 3.5mm Stereo Audio Output: Line level audio on TRS connector. Drives 1 VRMS line audio output with a sampling rate of 48kHz
  • Analog Audio Max Output Level: 4dBu on 150kΩ, DC coupling
  • Digital PCM Audio Output: RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz
  • PCM Max Output Level: 1Vpp on 75Ω, DC coupling
  • Audio Bandwidth: 20Hz to 20kHz @ 0dBu
  • TND + Noise: 0.33% @0dBu @ 1kHz
  • PCM Max Input Level: 1Vpp on 75Ω, AC coupling
  • Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector

General:

  • Regulation: CE, RoHS, WEEE, EAC
  • Enclosure: Black metal
  • Power Supply: USB to micro USB cable (power adapter not included)
  • Product: 2.17" x 3.085" x 0.68"
  • Weight: 4 oz

What's in the box:

  • Power Supply (qty 1) 5V/1A, 5W, wall type
  • Mounting: 2x L-bracket
