Features:

• HDMI Matrix Switching: 4/8 HDMI sources to 4/8 HDMI outputs
• Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels
• Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
• Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
• Independent Audio and Video Matrix: Output HDMI and Audio ports may switch together or independently
• Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
• EDID: Internal library with 15 internal EDID configurations per input, in addition to native EDID data for any Output/Display
• TMDS re-clocking: Support for long HDMI connectivity using Key Digital® HDMI cables
• Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™, and Dolby® Atmos
• Control: Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control
• Control System Support: Key Digital® app ready. Key Digital Management Software ™ Pro (KDMS ™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
• Key Digital® App & KDMS® Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® App and Key Digital Management Software ™ Pro (KDMS ™ Pro) PC Software

Specifications:

Technical:

• Input (Each): 1 HDMI Connector, Type A, 19 Pin Female
• Output (Each): 1 HDMI Connector, Type A, 19 Pin Female
• Output (Each): Balanced/unbalanced line level audio on 6-pin terminal block. Drives 2VRMS line audio input with a sampling rate of 192KHz
• Output (each): RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz
• Video Bandwidth: TMDS bandwidth 10.2 Gbps
• DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
• DDC Communication: EDID and HDCP Bi-directional buffering to Display and Source
• K-Factor: 0.22% @ optimal EQ » Video Isolation (Crosstalk): -45dB @ 5MHz
• Analog Audio Max Output Level: 4dBu on 150kΩ, DC coupling
• Audio Bandwidth: 20Hz to 20kHz @ 0dBu
• TND + Noise: 0.33% @0dBu @ 1kHz » PCM Max Input Level: 1Vpp on 75Ω, AC coupling
• PCM Max Output Level: 1Vpp on 75Ω, DC coupling
• Wired IR: modulated IR signal input, 0-5V TTL or -10 to +10V
• Power: 12V/3.3A (40W) AC Power Supply with Grounded, 2.1mm ID DC Power Jack with Screw In Type

General:

• Regulation: CE, RoHS, WEEE
• Rack Mount: 1U, 1 Rack Width (rack ears included)
• Enclosure: Black Metal

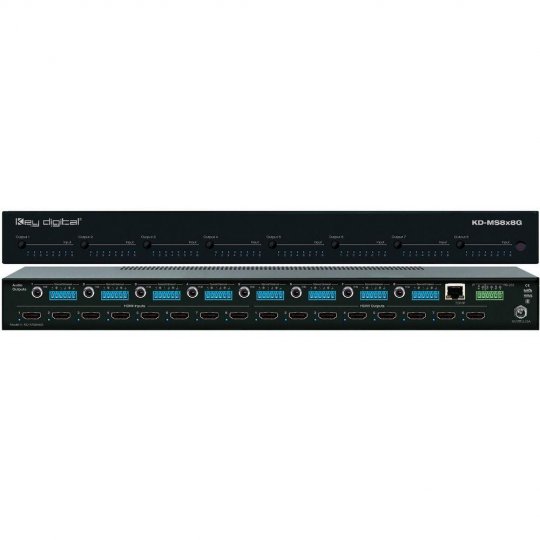

• KD-MS8x8G Dimensions: L = 17.32" W = 7.27" H = 1.72"
• Product Weight: 6 lb

What's in the box:

• Power Supply: (qty 1) 12V/3A, 36W, desktop type, model KDSP12V3A
• Rack Ears
• KD-RMSWPROK Remote Control
• 6-Pin Terminal Blocks Key digital KD-MS8x8G - (qty 5) / KD-MS8x8G - (qty 9)
