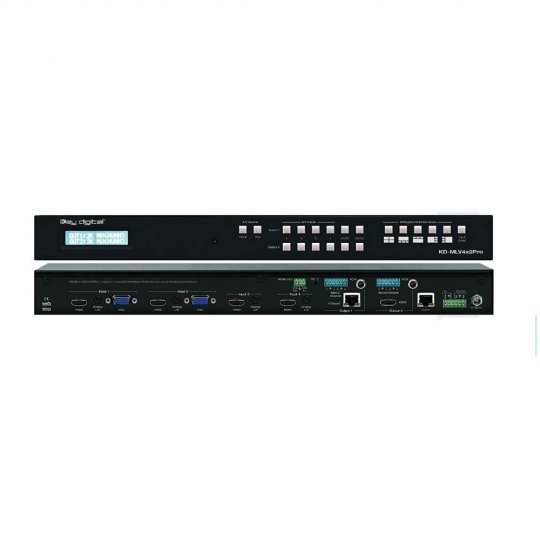

4x4 4K POH/HDBaseT/HDMI/VGA Multi-View Seamless Presentation Matrix Switcher (Includes: 1RX Extender).
Features:
- Multi-view and Tiling Processor: Create & store custom multi-view layouts, recall custom presets in 1080p (2K) Multi-view mode
- Quadrant Mode (4K or 2K): Independent outputs in four equally-sized windows
- Multi-view Mode (2K): Linked/mirrored outputs in customized screen layout
- Seamless Switching: Un-interrupted screen transitions during source selections
- Independent matrix switching: In full-screen and quadrant modes, linked/mirrored in multi-view mode
- Image Layering: Stack images with customizable priority settings
- Window Transparency and Border: View content through each other and choose window bezel width and coloring
- Multi-format Switch:
- Input: 2 HDMI, 2 HDMI or Analog video, all with external audio
- Output: 1 HDMI and 1 HDBaseT output. Rx unit included
- HDBaseT Built-In: Included KD-X222PORx unit is powered by at KD-MLV4x2Pro
- Signal Extension:
- Up to 200 feet @ 1080p/60, 1080p/24, 1080i, 720p with third-party CAT5e/6
- Up to 125 feet @ 4096x2160 30Hz [4:4:4] 8bit with third-party CAT5e/6
- Ultra HD/4K Up-scaling: Outputs independently upscale to 4096x2160 30Hz [4:4:4] 8bit in 4K Quadrant mode
- HDCP 2.2 Licensing: Fully licensed and compatible with HDCP 2.2
- Resolution Support: Supports SD, HD, and VESA input resolutions up to 1080p / 1920x1200 on HDMI and analog video Inputs. Outputs fixed to 1080p or 4K
- Web Control Interface: Reduces installation time and provides basic and advanced video and audio setup
- Audio De-Embed: Audio from the selected input is be de-embedded through the Coax digital (PCM) output in addition to the HDMI output
- Independent Video & Audio: Listen to any audio source while in quadrant or multi-view modes
- Dolby Digital & DTS Audio: Supports 2-channel and multi-channel audio formats up to 5.1 Dolby® / DTS ™ lossless compressed digital surround sound
- Analog to Digital Video Conversion: Analog video input ports support VGA / DB15 or Component / YPbPr signal types
- Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
- EDID: Internal library with 5 default EDID configurations for input, in addition to native EDID data for any Output / Display
- TMDS Re-clocking: Support for long HDMI connectivity using Key Digital® HDMI cables
- Deep Color Support: Up to 12 bits/color
- Control: Front panel buttons, IR, RS-232, TCP-IP and Web Control
- Control System Support: Key Digital® app ready. Key Digital Management Software ™ Pro (KDMS ™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
- Key Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App
Specifications:
Technical:
- Inputs: 4 HDMI connectors, Type A, 19 pin female; 2 HD analog video 15-pin female, 4 analog audio connector, 3.5mm stereo female
- Outputs: 1 HDMI connector, Type A, 19 pin female; 1 HDBaseT RJ45 female; 2 digital coaxial audio on RCA connector, female, follows SPDIF format IEC 60958; 2 Analog balanced/unbalanced 6-pin terminal block
- TMDS Bandwidth: 9 Gb/s tota
- Deep Color Support: Supports digital video formats in Deep Color Mode up to 8 bits/color with all HDMI and HDCP technologies
- Link: Single Link
- DDC Signal (Data): Input DDC signal - 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: 1.2 Volts p-p
- DDC Communication: EDID And HDCP buffering between source and display
- Wired IR: Modulated IR signal input, 0-5V TTL or -10 to +10V, 3.5mm mono female connector with signal on tip
- Power: External power supply; 12V/3A
General:
- Regulation: CE, RoHS, WEEE
- Rack Mount: 1U, full rack-width (rack ears included
- Product: 17.25" x 8.875" x 1.75"
- Weight: 6.5 lbs
What's in the box:
- Power Supply (qty 1) 12V/5A, 60W, desktop type, model KDSP60W12VC
- IR Remote Control: KD-RMMLV
- Rack ears
- Operating Instructions
