Features:

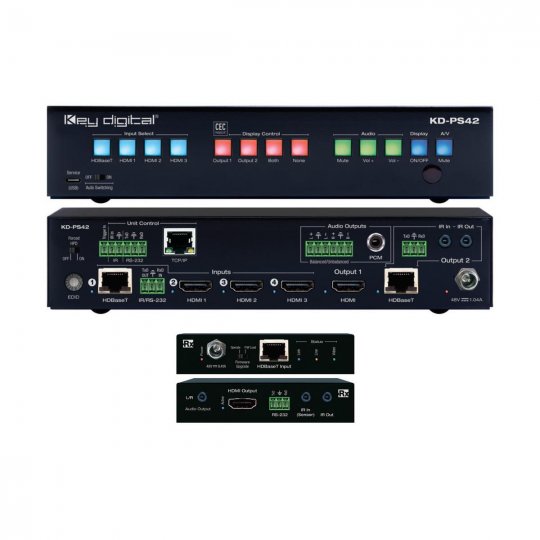

• Presentation Switcher Kit: Includes KD-PS42 and KD-X40MRx. Add KD-X2x1WDTx wall plate HDBaseT transmitter for plug-in on walls, floor and table boxes
• Presentation Switching: 3 HDMI, 1 HDBaseT source selection by push button, IP, RS-232, IR, auto switching, or trigger control
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• CEC Manager ™: Power, volume, and muting controls of the connected display/ projector without any additional control wiring. Selection of desired CEC command recipient
• Audio De-embedding: Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors
• KD-AMP220 Control Mode: Command forward to KD-Amp220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10: More life-like images through a greater range of luminance levels
• Power Over HDBaseT: Rx unit (included) and wall plate Tx unit powered by KD-PS42
• Installation: Half-rack width with rack mounting ears included
• Signal Extension: For resolution and cable quality
• 4K/UHD (18G): Up to 40m /131ft
• 1080p: Up to 70m / 230ft
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID
Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID
data copied from the Rx display/device
• RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
• Unit Control Mode: Provides TCP/IP and RS-232 control and status of/from Tx unit
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display 1
• Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio ™
• Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API: Compass
Control® Pro, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.
• KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager ™

Specifications:

General:

• Regulation: CE, RoHS, WEEE, EAC
• Enclosure: Black Metal

What's in the box:

• Power Supply (qty 1) 48V/1.04A, 50W, desktop type, model KDPS50W48VC
• Operation User Manual (qty 1)
• Remote Control: KD-RMPS (qty 1) includes battery
• Rack Ear Mount of PS42 (qty 2)
• Rack Ear Mount Screw of PS42 (qty 4)
• Half Rack Ear Mount of PS42 (qty1)
• Table Top Ear Mount of PS42 (qty 2)
• Table Top Ear Mount screw of PS42 (qty 4)
• RX Extender (KD-X40MRX) (qty 1)
• Wall Ear Mount of X40MRX (qty 2)
• Wall Ear Mount screw of X40MRX (qty 4)
• 6 Pos. Blue Color Terminal Block Plug (F73-5-30600060) (qty 1)
• 6 Pos. Green Color Terminal Block Plug (F73-5-30600050) (qty 1)
• 3 Pos. Green Color Terminal Block Plug (F73-5-30300050) (qty 2)
• 6FT USB B to USB A (USB 2.0) Data Cable (qty 1)
• 6FT Micro USB to USB A (USB 2.0) Data Cable (qty 1)
• IR Emitter (3.5mm mono type) (qty 1) Key Digital
• IR Sensor (3.5mm stereo type) (qty 1) Key Digital
