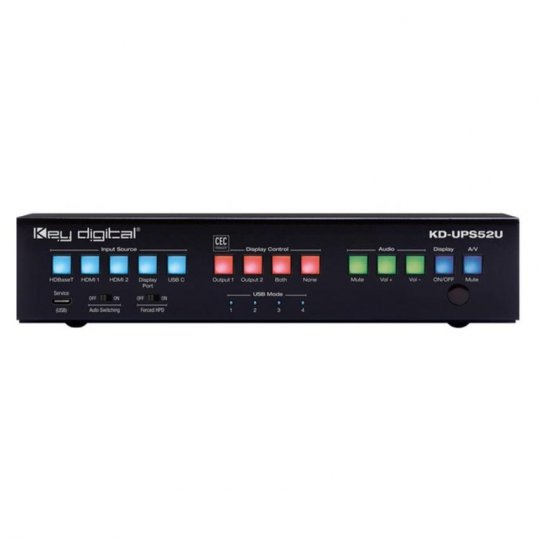

Key Digital KDUPS52USB 4K 18G Universal Presentation Switcher

Secure One-Page Checkout


Get 208 Miles That's 2 x the Miles When you spend $2,592.99. See details
Key Digital Authorised
This product is brand-new and factory sealed Key Digital KDUPS52USB  Available 2592.99
UPC : 815996021492  5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back
Shipping : FREE in Canada Ships in 2 to 4 Days

$216/mo suggested payments with 12 month special financing now with Flexiti.Get Instantly approved for 0% financing


  • Presentation Switcher Kit: Includes KD-UPS52U and KD-X100MRx. Add KD-X4x1WUTx wall plate HDBaseT Tx for plug-in on walls, floor and table boxes
  • Presentation Switching: 1 HDBaseT, 2 HDMI, 1 Display Port, 1 USB-C source selection by push button, IP, RS-232, IR, auto switching, or trigger control
  • Soft-Codec Enabling System: USB Host + Device ports on KD-UPS52U, KDX4x1WUTx wall plate transmit and KD-100MRx (included) create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
  • PTZ USB Camera Integration: Integrates natively with KD-CAMUSB for full PTZ control via KD-App and more
  • Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
  • CEC Manager ™: Power, volume, and muting controls of the connected display/ projector without any additional control wiring. Selection of desired CEC command recipient
  • Audio De-embedding: Audio of the selected source is de-embedded at the unit's analog L/R balanced/unbalanced and PCM digital audio connectors
  • ARC / eARC: Audio may be returned from the connected display or Rx (KD-X100MRx) unit and output on the external analog & digital outputs
  • KD-AMP220 Control Mode: Command forward to KD-AMP220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement
  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • HDR10: More life-like images through a greater range of luminance levels
  • Power Over HDBaseT: Rx unit (included) and wall plate Tx unit (sold separately) powered by KD-UPS52U
  • Installation: Half-rack width with rack mounting ears included
  • Signal Extension: For resolution and cable quality
  • 4K/UHD (18G): Up to 100m / 328ft
  • 1080p: Up to 150m / 492ft
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
  • RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
  • Unit Control Mode: Provides TCP/IP and RS-232 control and status of/from Tx unit
  • Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio ™
  • Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API: Compass
  • Control® Pro, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.
  • KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager



  • AV Inputs: 2x HDMI, 1x Display Port, 1x USB-C,
  • AV Outputs: 1x HDBaseT RJ45, 1x HDMI, 1x Analog Audio on 6-pin terminal block, 1x Digital Audio on PCM RCA
  • DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
  • HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
  • Display Port Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
  • USB-C Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
  • RJ45 Connectors: Shielded Link Connector, 2x HDBaseT, 1x LAN
  • Unit Control: TCP/IP on RJ45, Bi-directional RS-232, Serial IR, IR sensor, USB Micro
  • RS-232 Connector: 1x 3-pin terminal for unit control, 2x 3-pin terminal for pass-thru to/from HDBaseT Input and HDBaseT output
  • IR Connectors: 1x IR Sensor, 1x 2-pin terminal for unit control, 1x 2-pin terminal for IR pass-thru to HDBaseT Input, 1x 3.5mm mono for IR input pass-thru to HDBaseT Output, 1x 3.5mm mono for IR output pass-thru from HDBaseT Output
  • RS-232 Connector: 3-pin phoenix terminal


  • Regulation: CE, RoHS, WEEE, EAC
  • Enclosure: Black metal
  • Product Dimensions: 8.27 x 7.20 x 1.75" (210 x 183 x 44.4 mm)
  • Product Weight: Weight: 4.0 lbs / 1.81 kg

What's in the box:

  • Power Supply (qty 1) 48V/1.66A, 80W, desktop type, model KD-PS80W48VC
  • Operation User Manual (qty1)
  • Remote Control: KD-RMPS (qty 1) includes battery
  • Rack Ear Mount of UPS52U (qty 2)
  • Rack Ear Mount Screw of UPS52U (qty 4)
  • Half Rack Ear Mount of UPS52U (qty 1)
  • Table Top Ear Mount of UPS 52U (qty 2)
  • Table Top Ear Mount Screw of UPS52U (qty 4)
  • RX Extended (KD-X100MRX) (qty 1)
  • Wall Ear Mount of X100MRX (qty 2)
  • Wall Ear Mount Screw of X100MRX (qty 4)
  • 6 Pos. Blue Color Terminal Block Plug (F73-5-30600060) (qty 1)
  • 6 Pos. Green Color Terminal Block Plug (F73-5-30600050) (qty 1)
  • 3 Pos. Green Color Terminal Block Plug (F73-5-30300050) (qty 3)
  • 6FT Micro USB To USB A (USB 2.0) Data Cable (qty 1)
  • 6FT USB A to USB B (USB 2.0) Data Cable (qty 1)
  • IR Emitter (3.5mm mono type) (qty 1) Key Digital
  • IR Sensor (3.5mm stereo type) (qty 1) Key Digital
