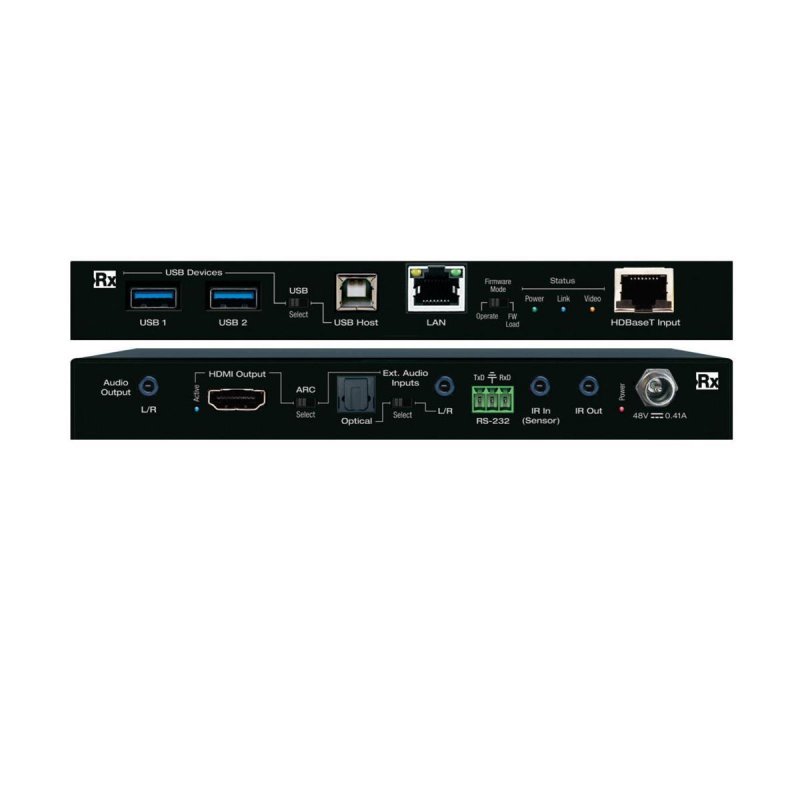

Key Digital KDX100MRX 4K HDBaseT Receiver
Brand New · Factory Sealed · Key Digital Authorized Dealer
$739.99
Free Canada-wide Shipping
•
Ships in 2 to 4 Days
end of _buybox_shipping
end of _buybox_core
end of _payments
end of _buybox_couponend of _xwarranty
- Available
- Free shipping
- 1yr Manufacturer Warranty
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001
Features:
- Tx Options: Sold a-la-carte to integrate natively with KD-X4x1WUTx wall-plate or KD-PS22UTx black box transmitters. Also integrates natively and is included with KD-UPS52U.
- Soft-Codec Enabling System: USB Host + Device ports on Rx and chosen wall-plate / Presentation Switch create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
- Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X4x1WUTx / KD-PS22UTx. Rx is powered by Tx when integrated with KD-UPS52U
- Audio De-embedding: Audio of the incoming source is de-embedded at the unit's analog L/R connector
- ARC / eARC: Audio may be returned to the connected Tx unit (KD-PS22UTx or KD-X3x1WUTx) from the connected HDMI display or external audio inputs
- CEC Manager ™: Passes through CEC control signals for monitors & projectors generated by KD-X4x1WUTx, KD-PS22UTx, or KD-UPS52U
- PTZ USB Camera Integration: Marries natively with KD-CAMUSB for full PTZ control via KD-App with supported presentation switcher
- KD-AMP220 Integration: Marries natively with KD-AMP220 for full volume and mic mix control with supported presentation switcher
- Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- Signal Extension: For resolution and cable quality
- 4K/UHD (18G): Up to 100m / 328 ft.
- 1080p: Up to 150m / 492 ft.
- 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
- HDR10: More life-like images through a greater range of luminance levels
- HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
- RS-232: Bi-Directional control to/from Tx/Presentation Switch and Rx unit
- Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™, and Dolby® Atmos
- Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API
- Low Profile: Super slim chassis design
Specifications:
Technical:
- Inputs: 1 HDBaseT, 1 L/R Stereo Audio, 1 Optical Audio, 1 Bi-Directional RS-232, 1 IR
- Outputs: 1 HDMI, 1 L/R Stereo Audio, 1 Bi-Directional RS-232, 1 IR
- USB: USB2.0 on 2 USB A and 1 USB B connection
- LAN: Shielded TCP/IP 1G/100 BaseT
- DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
- HDMI Connector: Type A, 19 Pin Female
- Analog Audio: Line level audio on 3.5mm TRS connector
- Digital Audio Output: TOSlink optical female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 96KHz
- RJ45 Connector: Shielded Link Connector, HDBaseT
- IR Connector: 2-pin phoenix terminal
- RS-232 Connector: 3-pin phoenix terminal
- Power: 48V / 1.04A, 50W
General:
- Regulation: CE, RoHS, WEEE, EAC
- Enclosure: Black metal
- Product: 7.16 x 4.8 x 0.87" (182 x 122.5 x 22.2mm)
- Weight: 1 lbs
What's in the box:
- Power Supply (qty 1) 48V/1.04A, 50W, desktop type, model KDPS50W48VC
- Mounting bracket (qty 2)
- 3-pin phoenix terminal (qty 1)
- IR Sensor (qty 1)
- IR Emitter (qty 1)
Product Details
- Key Digital KDX100MRX
-
Brand New : Factory Sealed
- UPC : 815996021263
- EFLC : 11937
