Features:

• Tx Options: Sold a-la-carte to integrate natively with KD-X2x1WDTx and KD-X2x1WVTx wall-plate transmitters
• Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X2x1WDTx / KD-X2x1WVTx. Rx is powered by Tx when integrated with KD-PS42 / KD-UPS42
• Audio De-embedding: Audio of the incoming source is de-embedded at the unit's analog L/R audio connection for ease of integration with audio systems
• CEC Manager ™: Passes through CEC control signals for monitors & projectors when integrated with KD-PS42 / KD-UPS42.
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• 4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Low Profile: Super slim chassis design
• Signal Extension: For resolution and cable quality
• 4K/UHD (18G): Up to 40m / 131ft
• 1080p: Up to 70m / 230ft
• 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
• HDR10: More life-like images through a greater range of luminance levels
• HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
• Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units
• RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector

Specifications:

Technical:

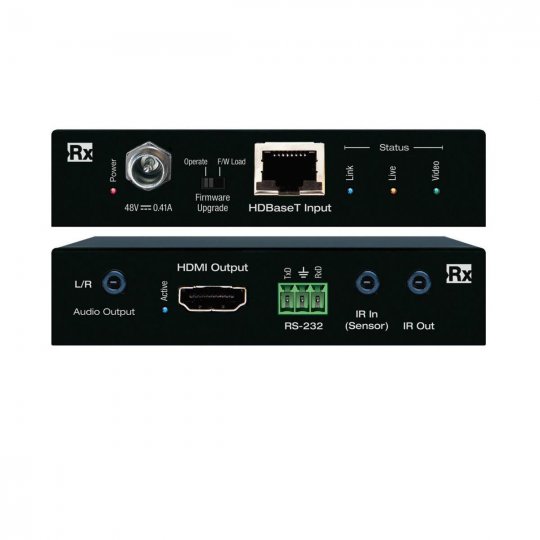

• Inputs: 1 HDBaseT, 1 Bi-Directional RS-232, 1 IR
• Outputs: 1 HDMI, 1 L/R Stereo Audio, 1 Bi-Directional RS-232, 1 IR
• DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• HDMI Connector: Type A, 19 Pin Female
• Audio Connector: 3.5mm Stereo Female
• RJ45 Connector: Shielded Link Connector, HDBaseT
• IR In Connector: 3.5mm Stereo female
• IR Out Connector: 3.5mm Mono female
• RS-232 Connector: 3-pin phoenix terminal

General:

• Regulation: CE, RoHS, WEEE, EAC
• Enclosure: Black meta
• Dimensions: 5.35" x 3.95" x 0.9" (136 x 100.4 x 22.95 mm)
• Product Weight: 0.4 lbs

What's in the box:

• Power Supply (qty 1) 48V/0.41A, 20W, desktop type, model KDPS20W48VC
• Mounting bracket (qty 2)
• IR Sensor (qty 1)
• IR Emitter (qty 1)
• 3-pin phoenix terminal (qty 1)
