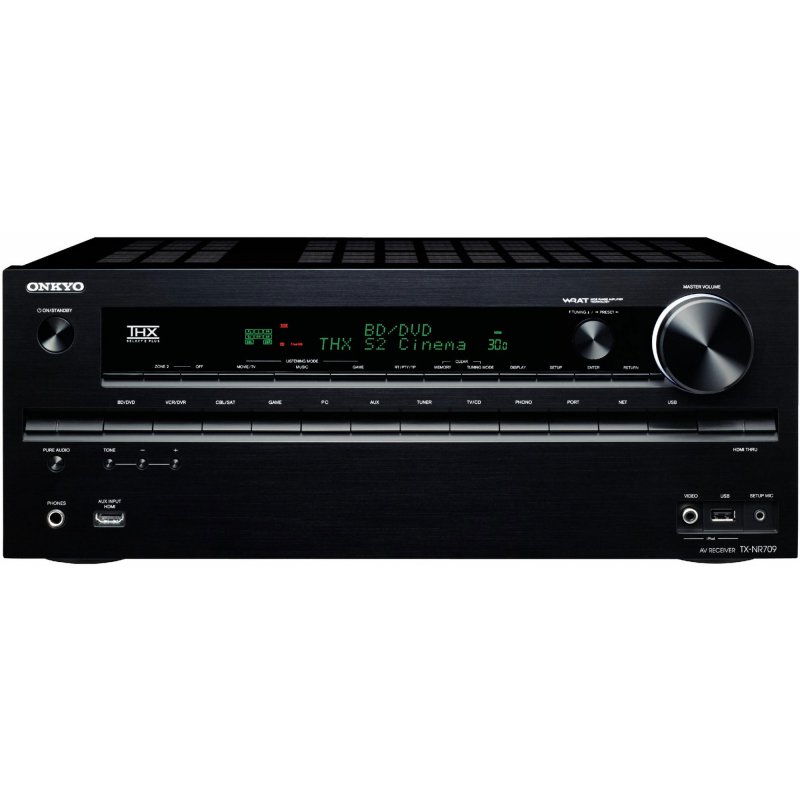

Onkyo TX-NR709 7.2-Channel 3-D Ready Network A/V Receiver Canada : EFLC.ca (TX-NR709)

end of _init_buybox

Get Connected with High-Performance Home Theater

With its bountiful array of connections, the TX-NR709 A/V receiver handles just about any playback device you care to hook up. Eight HDMI® inputs give you plenty of scope for high-definition sources, while two HDMI outputs double your display options. HDMI supports pristine lossless audio from Dolby and DTS and video upscaling to stunning 4K resolution via Qdeo™ technology. Connectivity is further enhanced by a front-panel USB port for digital link-up of iPod®/iPhone®, and a wide range of analog and digital inputs—including S-Video and 7.1 analog multichannel inputs—for all your legacy components. The network-capable TX-NR709 also brings PC audio and internet radio to your living room, where Audyssey MultEQ® XT calibrates the soundfield to match the room’s unique dimensions. Onkyo’s graphical OSD and navigation GUI make it easy to browse your content and adjust settings on the fly. Finally, bi-amping capability, 7.2 multichannel pre-outs, and a dedicated phono input provide further flexibility for the demanding audiophile and help propel the TX-NR709 to the head of its class.

Special Features

HDMI Support for 3D Video and Audio Return Channel
Marvell Qdeo™ Video Chip for 4K Upscaling and Processing
Network Capability Delivers Internet Radio and Network Streaming
THX® Select2 Plus™ Certified
Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
Audyssey MultEQ® XT Advanced Room-correction and Speaker Calibration
Audyssey DSX™ and Dolby® Pro Logic® IIz Add New Dimensions to Surround Sound

Amplifier Section
Power Output	-
Front L/R	110 W + 110 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 130 W + 130 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
Center	110 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 130 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
Surround L/R	110 W + 110 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 130 W + 130 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
Surround Back L/R	110 W + 110 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 130 W + 130 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
Dynamic Power	250 W (3 ohms, 1 ch) 220 W (4 ohms, 1 ch) 130 W (8 ohms, 1 ch)
THD (Total Harmonic Distortion)	0.08% (20 Hz-20 kHz, Half power)
Damping Factor	60 (Front, 1 kHz, 8 ohms)
Input Sensitivity and Impedance	200 mV/47 k-ohms (Line) 2.5mV/47 k-ohms (Phono MM)
Rated RCA Output Level and Impedance	200 mV/2.2 k-ohms (Pre out)
Maximum RCA Output Level and Impedance	4.6 V/470 ohms (Pre out)
Phono Overload	70 mV (MM, 1 kHz, 0.5%)
Frequency Response	5 Hz-100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control	±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio	106 dB (Line, IHF-A) 80 dB (Phono MM, IHF-A)
Speaker Impedance	4 ohms–16 ohms or 6 ohms-16 ohms
Video Section
Input Sensitivity/Output Level and Impedance	-
Video	1 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1 Vp-p/75 ohms (Composite)
Component Video Frequency Response	5 Hz–100 MHz, -3dB
Tuner Section
Tuning Frequency Range	-
FM	87.5 MHz–107.9 MHz
AM	530 kHz–1,710 kHz
FM/AM Preset Memory	40 stations
General
Power Supply	AC 120 V~, 60 Hz
Power Consumption	6.3 A
Dimensions (W x H x D)	17 1/8" x 6 7/8" x 14 15/16" (435 x 174 x 379 mm)
Weight	26.9 lbs (12.2 kg)

Two-Year Parts and Labor by Onkyo Canada

electronicsforless.ca is s registered dealer for Onkyo Canada.

electronicsforless.ca is a certified Onkyo Canada dealer

*XM requires separate purchase of XM Mini Tuner and Home Dock.SIRIUS requires separate purchase of subscription,compatible tuner and antenna.
