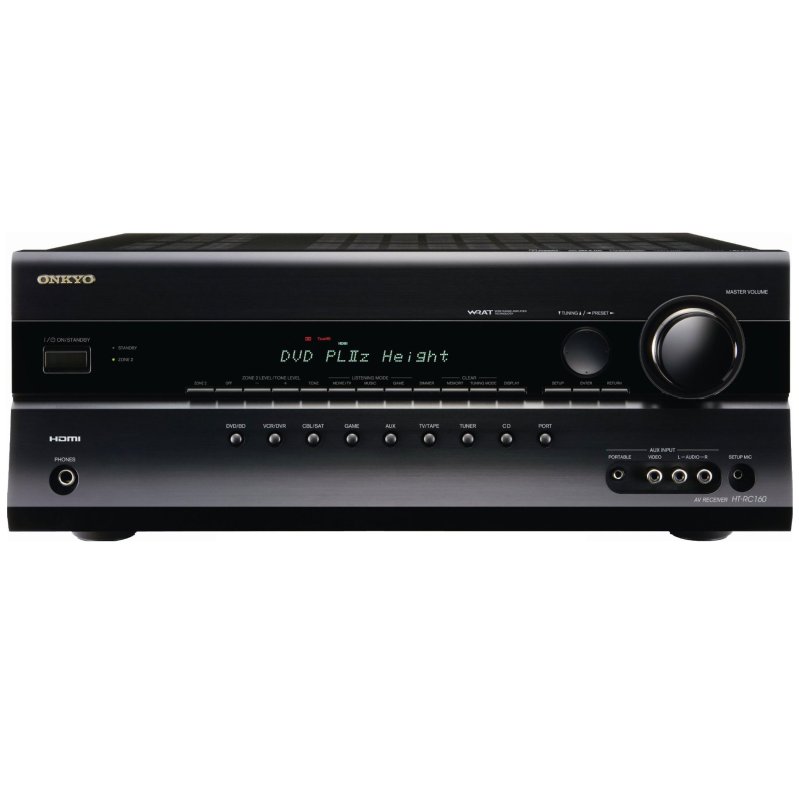

Onkyo HT-RC160 7.2-Channel Network A/V Receiver / Amplifier Canada : EFLC.ca (HT-RC160)

end of _init_buybox

Superb Versatility and Performance from an Affordable A/V Centerpiece

In these testing economic times, you can trust Onkyo to deliver maximum bang for your hard-earned buck. With the new HT-RC160, you have a multi-talented 7.2-channel receiver that offers the latest connecting, upscaling, and decoding technology on a bedrock of obsessively fine-tuned Onkyo amplification. Five HDMI™ 1.3a inputs enable clean, one-cable connection of multiple high-def sources, including Blu-ray Disc, gaming consoles, and set-top boxes. As well as handling native 1080p and upscaled 1080i video, HDMI 1.3a can also carry the HD audio of DTS-HD Master Audio™ and Dolby® TrueHD. The HT-RC160 even includes Dolby’s latest technology, Dolby®

Pro Logic® IIz, which adds “front height” channels to bring a spacious new vertical dimension to the sound stage. Along with intelligent Audyssey equalization and Faroudja deinterlacing technologies, the HT-RC160 gives you a ton of connectivity options, so you can incorporate HD Radio™, iPod®, and more.

Special Features

Five 1080p capable HDMI inputs
PLIIz new surround format for higher dimension
Analog to HDMI video upconversion by Faroujda DCDi
WRAT technology and discrete amp construction for cleaner sound
TrueHD/DTS-HD decoding to support the latest Blu-ray technology
Optional iPod Dock / HDradio module via proprietary U.Port

Amplifier Section
Power Output	-
Front L/R	80 W + 80 W (8 ohms, 20 Hz–20 kHz 0.08%, 2 channels driven, FTC) 90 W + 90 W (8 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
Center	80 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC) 90W (8 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
Surround L/R	80 W + 80 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC) 90 W + 90 W (8 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
Surround Back L/R	80 W + 80 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC) 90 W + 90 W (8 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
Dynamic Power	180 W (3 ohms, 1 ch) 110 W (4 ohms, 1 ch) 100 W (8 ohms, 1 ch)
THD (Total Harmonic Distortion)	0.08% (Rated power)
Damping Factor	60 (Front, 1 kHz, 8 ohms)
Input Sensitivity and Impedance	200 mV/47 k-ohms (Line)
Output Level and Impedance	200 mV/2.2 k-ohms (Rec out)
Phono Overload	-
Frequency Response	5 Hz–100 kHz/+1 dB, -3 dB
Tone Control	±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio	106 dB (Line, IHF-A)
Speaker Impedance	6 ohms–16 ohms
Video Section
Input Sensitivity/Output Level and Impedance	-
Video	1 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1 Vp-p/75 ohms (Composite)
Component Video Frequency Response	5 Hz–50 MHz (-3 dB)
Tuner Section
Tuning Frequency Range	-
FM	87.5 MHz–107.9 MHz
AM	530 kHz–1,710 kHz
FM/AM Preset Memory	40 stations
General
Power Supply	AC 120 V, 60 Hz
Power Consumption	5.5 A
Dimensions (W x H x D)	17 1/8" x 6 15/16" x 12 15/16" (435 x 176 x 329 mm)
Weight	23.8 lbs. (10.8 kg)

Two-Year Parts and Labor by Onkyo Canada

electronicsforless.ca is s registered dealer for Onkyo Canada.

electronicsforless.ca is a certified Onkyo Canada dealer

Product Details

Onkyo HT-RC160
Brand New : Factory Sealed
UPC : 751398009136
EFLC : 1960
Write a review

Warranty

Two Year Warranty

Parts and Labour Warranty
Canada-wide Coverage
Onkyo Authorized

View the detailed warranty policy

Returns

Easy Returns

30-day return window on eligible items
Full refund issued in accordance with our return policy

View our full return policy
