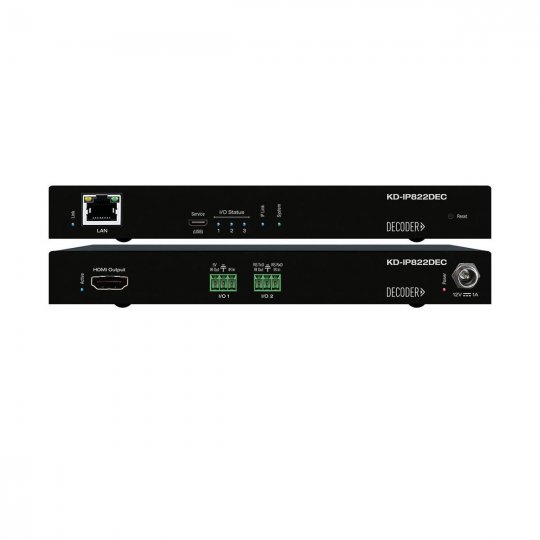

Key Digital's Enterprise AV over IP solutions create expandable HDMI over IP systems that can be scaled to fit any commercial installation.

Features:

• AV Over IP: Utilizes a managed gigabit network switch to enable video distribution, matrix switching, and extension
• Inter-System Compatibility: Fully compatible with KD-IP922ENC and DEC units / systems
• Video Wall Processing: Encoder + Decoder systems create video walls with up to 16x16, 256 total maximum displays.
• Control: 2 multi-function ports may be used as third-party control interface, Compass Control® Pro master controller, control extension via IP, or callable via KeyCode open API
• Key Digital® App Ready: Network scan & detect populates pre-built GUI including optional image preview, finger drag video wall management, and display control via IR.
• KDMS Pro Ready: PC software for unit & system setup and control UI with clean End-User mode option including optional image preview, mouse-drag video wall management, and display control via IR and PJ Link IP.
• HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
• 4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit (10.2Gbps max bandwidth)
• 4K Down-scale: Incoming 4K resolution can be down-converted to 1080p or 720p at each decoder, enabling monitors to display content at optimal resolution at all times
• HDR (High Dynamic Range): HDR is achieved with AppleTV source at 4K/30 [4:2:2] 12bit deep color, enabling more life-like images through a greater range of liminance levels
• Signal Extension: Up to 330 ft. / 100 m @ 4K 24/25/30(4:4:4)/60(4:2:0) into network switch or or point-to-point
• Power over Ethernet: Does not require power supply when integrated with compatible PoE network switch
• Redundant Power Connection: Added reliability for non-PoE integration. Power supply/li>
• Data Stream Bandwidth: < 900Mbps
• Latency: <40ms at 4K. Less at lower resolution
• Installation: Use KD-SMS16 to cleanly install up to twelve KD-IP822ENC/DEC units in rack
• HDMI® and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60 f/s
• EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected to Decoder
• Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices
• Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control
• IR Sensor: Sensor powering via +5V IR In port collects line-of-sight IR from remote(s) without external IR connecting block
• Up/Down IR: Two channels of IR enable control to/from devices connected to Encoder and Decoder units
• RS-232: Bi-Directional control to/from Encoder and Decoder unit on Phoenix connector
• RS-232/TCP-IP Control Mode: Provides control of unit as well as connectivity status
• Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio ™
• Control System Support: Controllable by all IR, RS-232 & TCP/IP supported control systems via open API: Compass Control® Pro, AMX®, Control4®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.

Specifications:

General:

• Regulation: CE, RoHS, WEEE, EAC
• Enclosure: Black Metal
• Product (Each): 7.5" x 5.59" x 0.85"
• Weight: 0.7 lbs

Whats in the box:

• Power Supply (qty 1) 12V/1.66A, 20W, desktop type, model KDPS20W12VC
• 6ft USB A to B data cable (qty 1)
• 3-pin phoenix terminal (qty 1)
• IR Sensor (qty 1)
• IR Emitter (qty 1)
• Ear Mount (qty 2)
• Ear Mount Screw (qty 4)
• Operation User Manual (qty 1)
